Easy Operated Automatic Plastic Tie Machine For Motor Coil Using Cable Ties

The first automatic cable tie machine in the world for motor coil bundling or for cable tie binding in small room!

How does the machine work?

The machine consists of the host machine, the vibration bowl and the gun. The bowl is set on the host. The gun is connected to the host by the feeding hose and the data hose. When power on, touch the 'AUTO', tread the pedal, it will automatically bundle the motor coil. You spend about 1.2S to bind one.

1) Using PLC control system, touch screen operation is simple and convenient, work stability is good
2) Bulk nylon tape to achieve automatic feeding, eliminating the cumbersome process of artificial discharge

3) Automatic wear cable ties, saving time and effort to improve the efficiency of several times

Product specifications

Features

1. Use bulk cable ties, vibration feeding, transferred to the Tool via hose.

2. Pulling the trigger, automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.

3. The whole operation takes only 1.2s, one machine can save 1-2 operators. Different waste material collecting methods for choice.

4. PLC + Touch Panel controlling, easily to manage.

5. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.

6. Automatic detect the failure, the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.

Operations

1 . Take 200 - 300pcs bulk cable ties into the vibration at random.

2 . Let the motor coil under the gun claw and tread the pedal. It will automatically bundle it.

3 . No cable ties left in the vibration overnight. Or it is easy to make them deformed.

4 . If you are not the technical engineer, don't operate the "manual".

5 . If the binding force is small, you can turn the knob to adjust it.

Advantages

1. Could be fixed as desktop type; and could be applied to full automation line.

2. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.

3. Automatic detect the failure that means the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.

4.There has the function of detecting cable tie jam, if there is any cable tie jam in the Tool or in the hose, the machine would stop running and automatic clean the jammed cable tie, and then restart automatically.

5. The machine count quantity only after the operation succeeded.

Why choose Shenzhen Swift Automation technology CO.,Ltd?

We are a professional manufacturer of automatic cable tie system in the world.

The machine is our patent product and we have strong R & D team to improve the quality and service.

Since 2000, we always devote to rearch and develop the machine. We have perfect progress to test the machine quality and offer the tech support forever.

Related products

Shenzhen Swift Automation Technology Co., Ltd. is located in the BaoAn District of Shenzhen City,12 KM to the Shenzhen Airport and near the New Convention and exhibition center. Our business majorly covers 2 aspects:

1. Automatic Nylon Cable Tie machine and its supporting equipments.
2. Nylon Cable Ties.

We have a very strong design team, most of the engineers graduated from the renowned military institution, such as HIT,Beijing Institute of Technology, Shenyang Aerospace University, worked as weapon designer for many years, and got trained and worked in Switzerland, Germany, Austria, and Czech Republicas for auomation design for years; Served as senior engineer and senior engineering manager in a number of large multinational enterprises (Vitech, Microsoft, Foxconn, Flextronics, TE, Whirlpool, etc.). Most of our assembly engineers come from丿apanese automation companies. Obtained European design conception and skill, with Japanese quality sense to control the manufacturing process, we can provide you the best technical solution and reliable product quality.
SWIFT--- will be becoming the world's top brand of nylon cable tie and the tools maker, with more than 50 inventions patents as well as multiple software Copyrights. Not only in dominant position in China market, our products have been sold to more than 30 countries and regions (such as United States, Netherlands, Mexico, Japan, South Korea, Turkey, Romania, Italy ... highly developed countries}, with nearly 400 customers in worldwide.

Our target: Internationalization, branding, specialization .

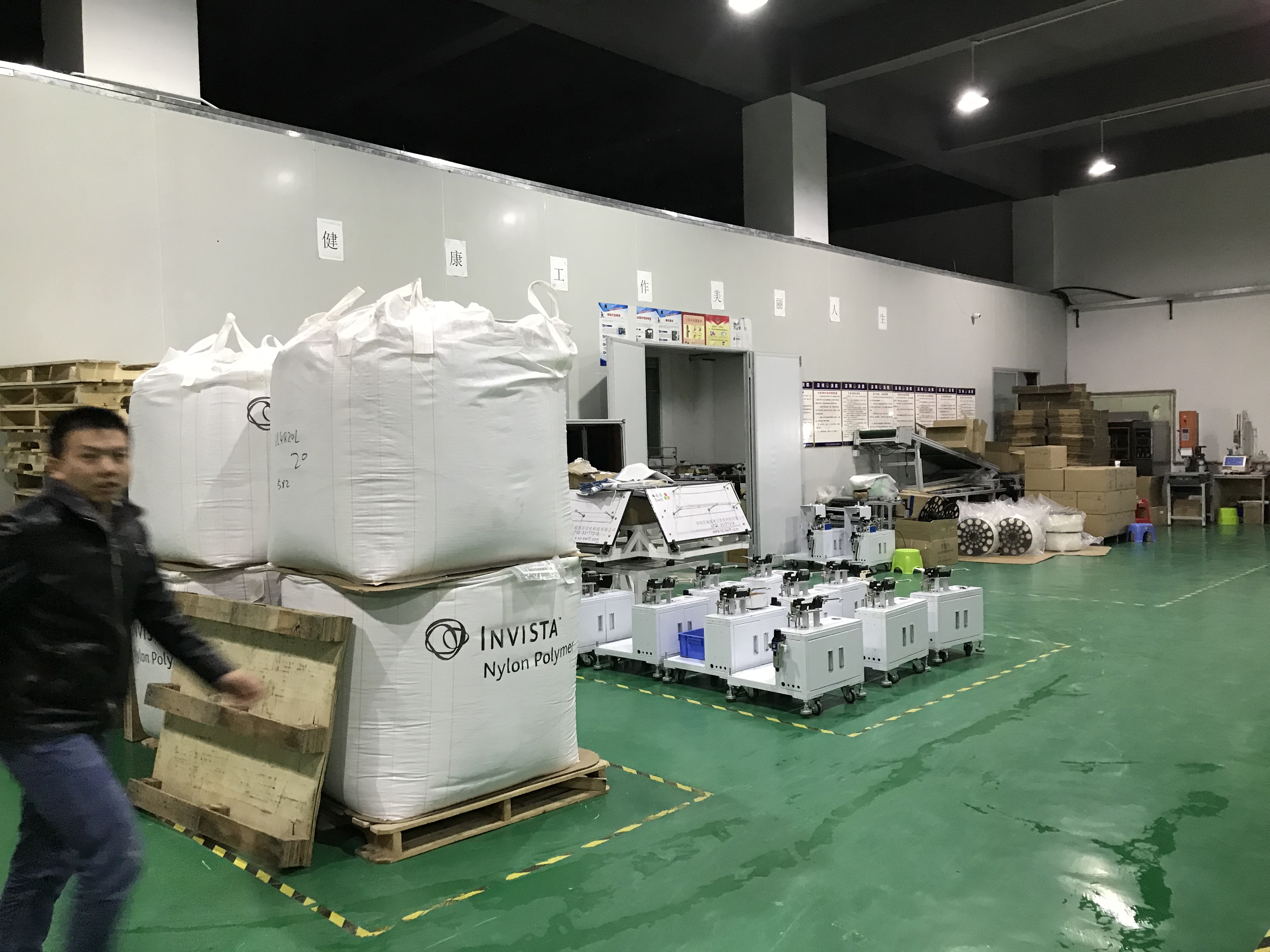

Our factory
