Quickly Binding Save Time Wire Tying Machine For Bundling Damping
Sheet
Bundle numbers of damping sheet quickly, save time and cost. We are
the leader of automatic cable tie tool.
Features
1. Loose cable ties: W3.6 * L100mm, T36100.

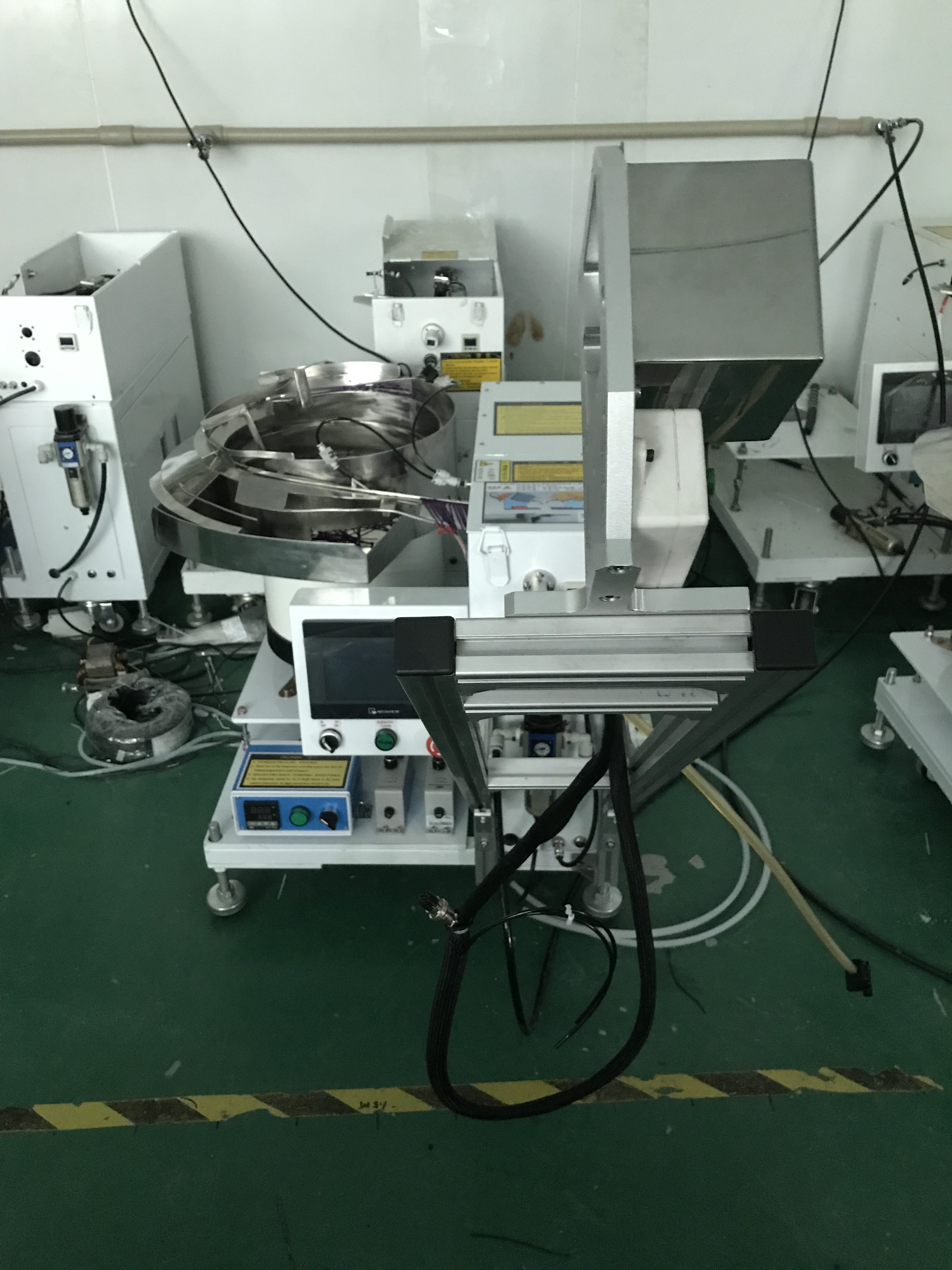

2. Vibration bowl would re-rank loose cable ties through vibrating
(semi-wave).
3. When to tread foot pedal, cable ties would be sent to the gun
and are bundled automatically.
4. PLC control system and touch screen, easier to manage.
5. The binding force is adjusted by turning knob.
6. Power supply: AC220, 50/60Hz.
7. Pneumatic pressure: 5kg/cm².
SWT36100F base data
| Brand | SWIFT |
| Name | SWT36100F |
| Description | Bundle numbers of damping sheet quickly. |
| Features and advantages | 1. Use loose cable ties T36100; 2. Tread foot pedal then start to bundle. 3. It takes 0.8S to thread, pull and tighten, cut off cable ties. 4. One machine can save 4 workers a year. 5. The binding force is adjustable. 6. Different waste material could be collected into a box. 7. The tool gun is fixed in the bench, hands are free. |
| Bench mount kit | A tool gun and its support(standard) |
| Tool gun size | L278 * W240 * H149mm; N.W.: 4kg |
| Host machine size | L690* W670 * H670mm |
| Overhead suspension | None |
| Cable ties | T3610 bulk cable ties |
| Material | Nylon 66 certified by UL, RoHS etc. |
| Width | 3.6mm |
| Length | 100mm |
| Quantity/bag | 1,000pcs |
| Usage/per time in vibration bowl | 230pcs better |
| Bundling Max Dia. for wire | Ø18.0mm |
| Bundling Max Dia. for tube | Ø16.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Cycle time / Bundling speed | 0.8S |
| Operation | Electric powered |
| Tool head power | DC48V (auto switch) |
| Power supply | AC220V, 50/60Hz; Euro plug |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Tension force | Adjustable |
Delivery details
The machine would be divided to two parts to pack.
The host machine, 1pcs wooden case, G.W.: 100KG, packing size: L75
* W71 * H86cm
The vibration bowl, 1pcs wooden case, G.W.: 68KG, packing size: L68
* W55 * H94cm
Trade terms
| 1. Payment term: 70% TT payment before production; 30% payment
before ship. |
| 2. Price: EXW, Fob Shenzhen, CIF and so on. |
| 3. Shipment ways: by sea, by air, or by express |
| 4. Sea port: Shenzhen |
Service
1. We are online 24hours. If you have any questions, pls contact us
anytime.
2. We have a professional team and will meet your requires.
3. SWIFT backs up its products with an efficient, cost effective
after sales service, including free telephone support and quick
response times.
4. We provide 12months warranty and tech support forever.
