Touch Screen SWT36150HC DC48V Electrical Wire Tie Tool
No Hands Binding Electrical Cable Tie Install Tool Fast Bundling
Speed
Electrical cable tie install tool SWT36150HC is made by SWIFT in
China mainland. This tool can handle 4,000pcs cable ties per time.
You could use it to lace cable ties in fast speed, about 1S.

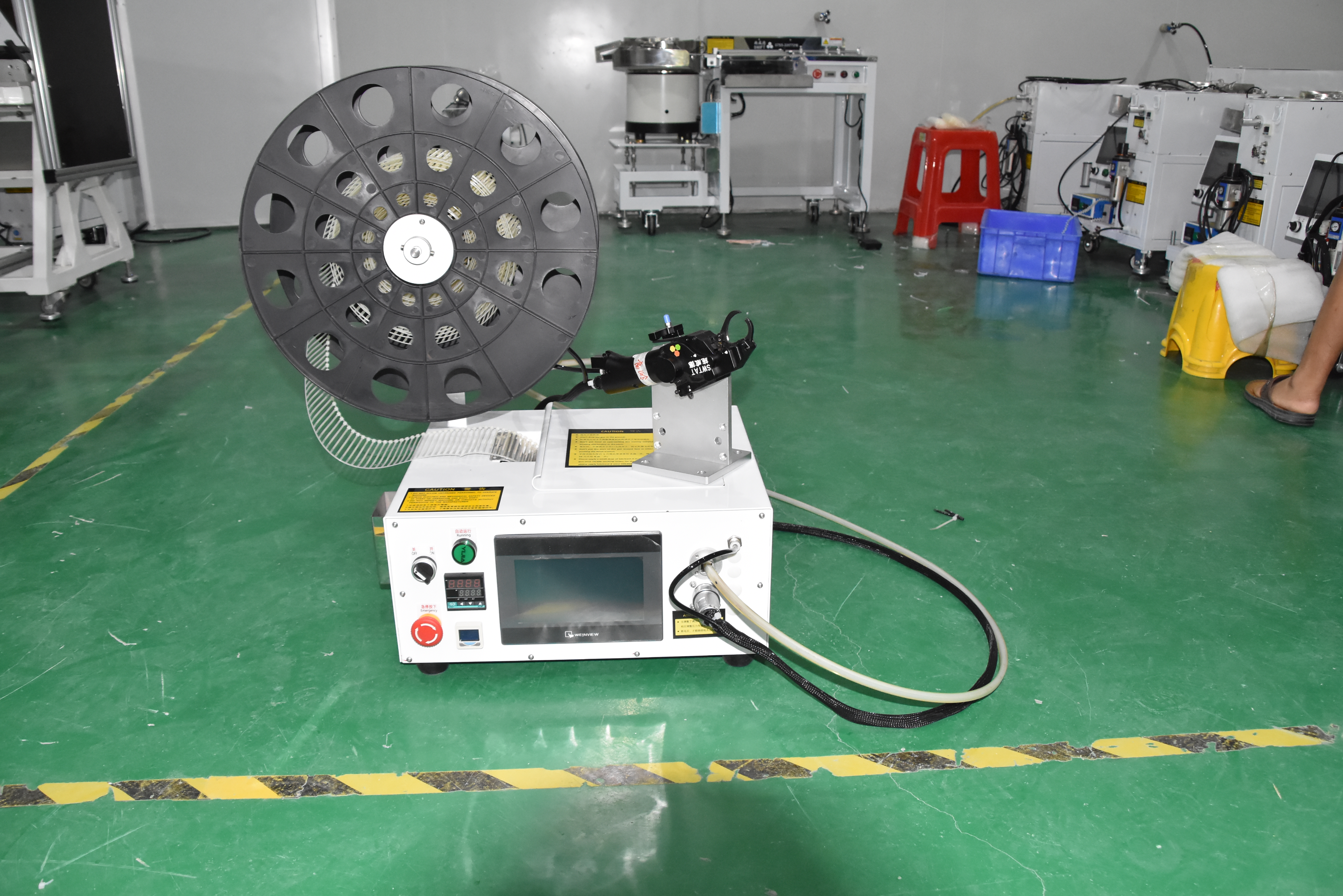

Machine components
| SWT36150HC electrical cable tie install tool |
| Machine components | Functions |
| 1. A handheld cable tie gun | Automatic adapting different sizes items and bundling cable ties
until items are bound tightly together. |
| 2. Cable ties in reel | 4,000pcs cable ties/”formed and laced” cables. |
| 3. Touch panel | Dual languages display, Chinese and English. |
| 4. Temperature control system | Set temperature then heat cable ties. |
| 5.Pneumatic system | Convey materials and control motion |
| 6. A feeding hose and a data hose | Convey cable ties; Transfer signals. |
| 7. Host frame | Support touch screen, pneumatic system etc. |
SWT36150HC advantages
1. Handle 4,000pcs cable ties per time.
2. Pull the trigger, automatic bundling without threading,
tightening and cutting by hands.
3. It could count the quantity of cable ties that are bound
successfully.
4. Economic hand shank design, comfortable to hold and operate.
5. Provide a clean and neat cut and prevent sharp cable tie
protrusions.
6. The length between the cut and the cable tie head is adjustable.
The min length is 0.5-1.2mm.
7. Different excess tails collecting methods for choice (optional).
SWT36150HC base data
| No. 1 | Description | Electrical Cable Tie Install Tool |
| 2 | Applications | Automatic binding cable ties without hands binding. |
| 3 | Brand | SWIFT |
| 4 | Model | SWT36150HC |
| 5 | Features/advantages | 1. Handle 4,000pcs cable ties per time in 1hour and 33minutes. 2. Takes 1.2S to bundle and cut cable tie off automatically. 3. One hand to operate the cable tie gun, the other hand to hold
items or do other actions. 4. Leaving a clean and neat cut. 5. Touch panel, Chinese and English display together. 6. Customize is welcomed, such as a robot arm. |
| 6 | Cable ties details | Ties type | Reel cable ties |
| Tie model | C36150 |
| Tie width | 3.6mm |
| Tie length | 6inch (150mm) |
| Tie thickness | 1.2mm |
| Tensile strength | 14kg |
| Quantity/bags | 4,000pcs |
| 7 | Usage/per time in vibration bowl | 4,000pcs(no vibration bowl) |
| 8 | Max bundling Dia. for wire | Ø31.0mm |
| 9 | Max bundling Dia. for tube | ø 13.0mm |
| 10 | Min bundling Dia. | ø 2.0mm |
| 11 | Bundling speed | 1.2S |
| 12 | Cable tie gun details | Out power | DC48V auto switch |
| Size | L27 * W11 * T7.4cm |
| Tension forces | Adjustable |
| 13 | Power supply | AC110V/AC220V, 50/60Hz; plugs optional |
| 14 | Pneumatic pressure | 5kg/cm² |
| 15 | Max Power | 1,000W |
| 16 | Certificates | CE and RoHS |
| 17 | Packing details | Host machine/wooden case | Packing size | L65 * W60 * H39mm |
| N.W./kg | 30KG |
| G.W./kg | 40kg |
| Vibration bowl/wooden case | Packing size | None |
| N.W./kg | None |
| G.W./kg | None |
| Total wooden cases | 1pcs |
| Total N.W./kg | 32kg |
| Total G.W./kg | 40kg |
FAQ
1. Are you a trading company or factory?
We are a factory and sale our products to different country. There
are agents in Poland, Turkey, and Italy etc.
2. What is the delivery time?
In general 10days. It starts to produce machine after confirm
payment.
3. Can you offer cable ties samples?
Yes, we could offer free cable ties to you to check. Our cable ties
quality is better than others.
