Time Saving Automatic Nylon Cable Tie Machine For Wires Harness
Industry
SWT36100F is a cable tie machine fixed in the bench. It could
bundle objects with cable ties in 0.9S. It is faster than by human
bundle them by hand.

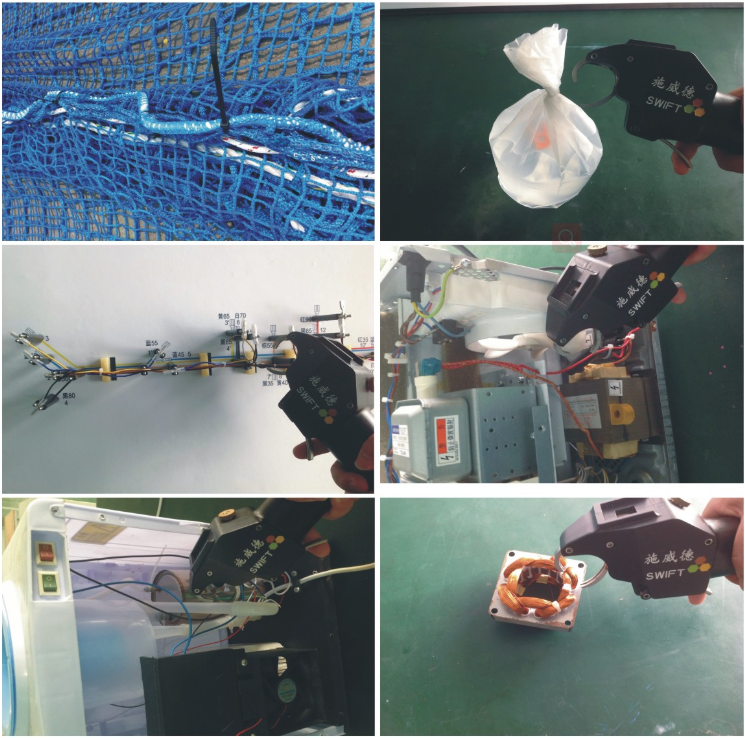

Applications
Wires harness industry
Kinds of wirings, especially the harness with PVC sleeve
Food industry
Bags sealed , food labels, bottles fixed each other etc.
Aero industry
The motors, wire harness of aero parts and so on.
SWT36100H advantages
1 . Speed up the bundling process.
2 . Two hands to handle the work pieces because of treading the
pedal.
3 . The bundling force is adjustable.
4 . 0.9seconds one cycle, automatically bundling / threading /
tightening / cutting.
SWT36100H parameters
| The host machine for SWT36100F |
| Model | SWT36100F |
| Host size | Length | 690mm |
| Width | 670mm |
| Height | 670mm |
| Host weight | 150kg |
| Temperature | 40℃ - 50℃ suggest ( in cold winter ) |
| Host power supply | AC110V, 50 / 60Hz |
| Power | 1000W |
| Pneumatic pressure | 5kg / cm² |
| Cable tie gun of SWT36100F |
| Using cable tie | Width 3.6mm * Length 100mm |
| Bundling Max Dia. for wire / tube | Ø 18 / ø 16mm |
| Bundling Min Dia. | Ø 3.0mm |
| Gun tool size | L278 * W240 * H149mm |
| Gun weight | 4.0kg/pcs |
| Gun tool power supply | DC48V ( auto switch ) |
How to operate cable tie machine?
1. When you receive the machine, you need to install the vibration
bowl and the gun tool to the host machine.
2. After install, select “Auto” model. The touch screen is easy to
operate.
3. Pull the trigger on the gun tool, the machine would start to
work.
Packing details
| Packing details on SWT36100F automatic cable tie machine |
| The host machine / wooden case | Weight/kg | 167kg |
| Packing Size/cm | L77 * W70 * H86cm |
| The vibration bowl / wooden case | Weight/kg | 70kg |
| Packing Size/cm | L68 * W58 * H93cm |
| Total G.W. | 237kg( estimated) |
Our service
We are professional team and have our own factory. The competitive
price will offer to you.
1. Your inquiry will be replied in 24hours.
2 . OEM and ODM is highly welcomed.
3 . Videos guide or telephone.
4 . There are 1 year warranty and tech support forever.
FAQ
| FAQ |
| Questions | Answer |
| 1 . What is your MOQ? | It is 1pcs for cable tie machine, 200,000pcs for nylon cable ties. |
| 2 . Can you offer the free sample? | We can offer some cable ties as sample. |
| 3 . What is your delivery time? | 10 days or 15days. |
| 4 . Can I use other brands cable ties? | Yes, you can use some to test in the first time. If no problem, you
can use them continuously. |
| 5 . What is the meaning of “F” in SWT36100F? | F means the cable tie gun is fixed in the bench. |
| 6 . Can I use different kinds of cable ties in SWT36100F? | No, you must use cable ties W3.6 * H100mm. The head size of it is
L6.1 * W5.9* H4.6mm. |
