    4 Axes Robotic Full Auto Cable Tie Machine W2.5mm * L120mm Cable Tie Size

    Ask Lasest Price
    Brand Name : SWIFT
    Model Number : SWT25100H-RT1200
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100pcs/month
    Delivery Time : 15working days
    • Product Details
    • Company Profile

    4 Axes Robotic Full Auto Cable Tie Machine W2.5mm * L120mm Cable Tie Size

    Bundling Zip Ties Robotic Automatic Cable Tie System For Assembly Line


    Automatic cable tie system! Professional manufacturer! 18 year experience in automation industry! The whole operation takes only 0.7s, (Not including auxiliary time),One machine can save 3-4 operators


    SWT25120H-RT1200 technical parameters


    1ItemDescriptionValue
    BrandSWIFTNone
    2ModelSWT25120H-RT1200None
    Be suitable for full automation lineNone
    34axesX/Y/Z/R TravelX:1200; Y:550; Z:40; R: 0 - 180°

    4


    Working zone numbers2* cable tie gun number2

    5


    Cable tie gunCable tie gun number1
    6Fixture boardSizeL1400 * H610mm
    7Cable tiesModelT25100
    Width2.5mm
    Length120mm
    Thicker1.1mm

    8


    Operation speedBundle one cable tie0.7S
    9

    Max banding Dia.


    For wireØ 22mm
    For tubeØ 20mm
    10Min banding Dia.For tube / wireØ 2.0mm
    11The feeding hoseLength2.5m
    12The bending forcesBe adjusted
    13VoltageAC110V, 50 / 60Hz
    US plug
    14The gun V.DC24V (switch automatically)
    15Pneumatic pressure5kg/cm²

    Features


    1. 4 axes, X, Y, Z + Rotation.


    2. X/Y/Z/R Travel: X:1200; Y:550; Z:40; R: 0 - 180°.

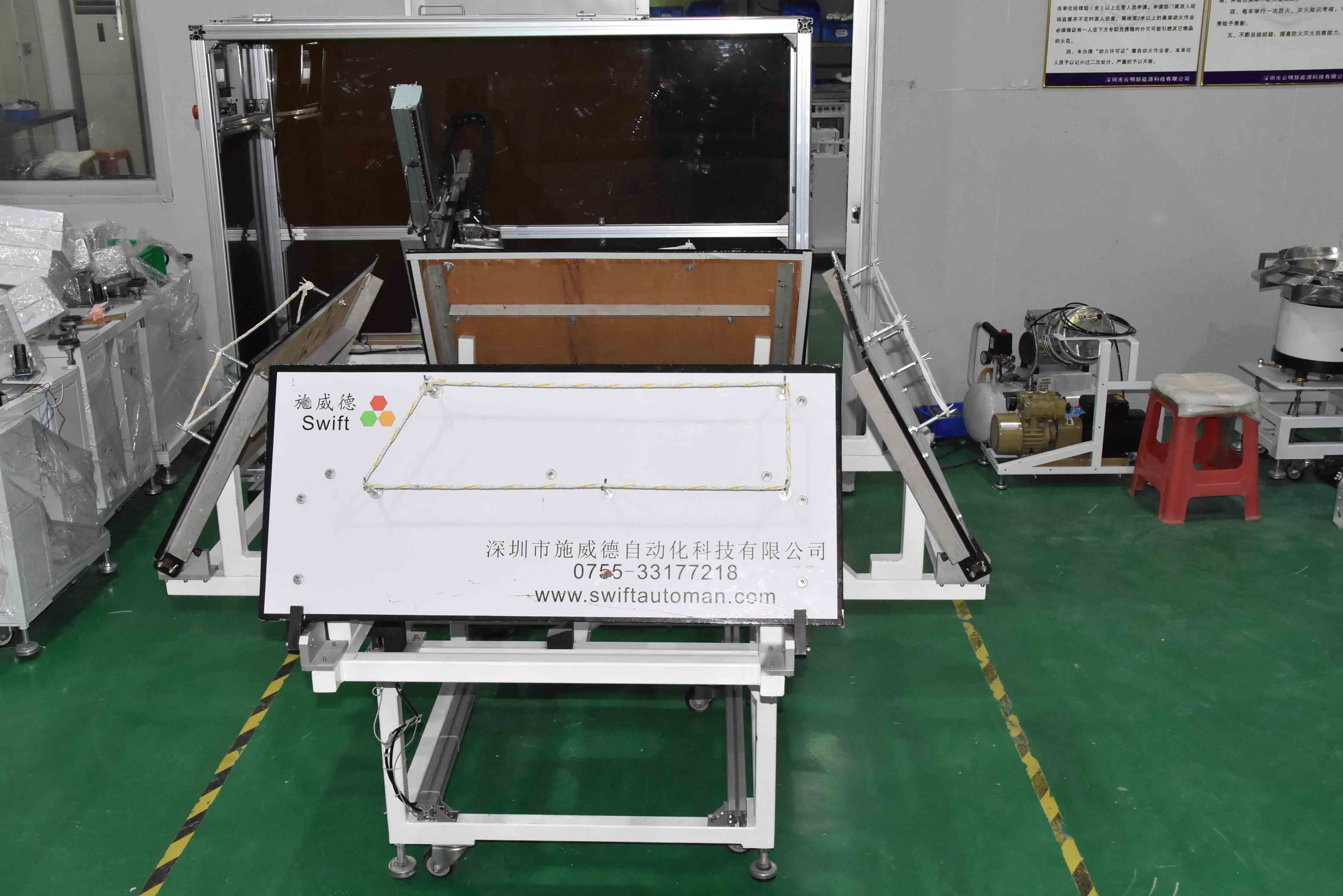

    3. Two working fields. One is for worker to load wires and test the connecting. The other one is for the robot and cable gun to bundle wires.


    4. Be suitable for bundle 1 – 10 cable ties in wires.


    5. Automatic detecting if cable ties are bound successfully. If fail, the root would deal with the issue and repeat cable tie bundling.


    6. The excess tail collecting system. The waste material would be collected into a box.


    7. With wheels.


    Service


    1. Free samples: we could offer free cable ties for your check.


    2. Warranty: 12month and tech support forever.


    3. Payment term: TT payment/negotiate


    4. Delivery time: 15working days.
