Multifunction Handheld Automatic Cable Tie Tool For Saving Cost And
Time
The machine SWT36200H can automatically band the cable tie to fix
the goods. You can choose to operate the gun by hand or buy an
extra support to fix it in the desk. In the cold environment, when
to use cable ties, they will get weak. Our machine has the
tempreture control system to protect them and keep soft.
SWT36100H parameter
| No. | Item | Description | Value |
| 1 | Model | SWT36100H | No |
| Handheld type available | No |
| 2 | Size Of cable size | Width | 3.6mm |
| Length | 100mm |
| Thicker | 1.25mm |
| 3 | Operation speed | For one cable tie | 0.8S |
| 4 |
Max banding Dia.
| For wire | Ø 18mm |
| For tube | Ø 16mm |
| 5 | Min banding Dia. | For tube / wire | Ø 2mm |
| 6 | The feeding hose | Length | 2.5m |
| 7 | The bending force | 5 kinds of force available |
| 8 | Voltage | AC220V, 50 / 60Hz |
| 9 | The gun V. | DC24V ( auto switch ) |
| 10 | Power | 1000W |
| 11 | Pneumatic pressure | 5kg / cm² |
| 12 | Warranty | 1year |
SWT36100H details
1 . Multifuction
| No. | Item | Description |
| 1 | Feeding | Vibration feeding to the gun head |
| 2 | Bundling | Binding the goods with cable tie through the gun |
| 3 | Tempreture control | Improve the cable tie toughness when using the machine |
| 4 | Quantity of cable ties | Count the qty after the operation succeeded |
| 5 | Auto detect jam | Automatically detect the jam and deal with it |
| 6 | Using ways | Handheld type or fied type by adding a support |

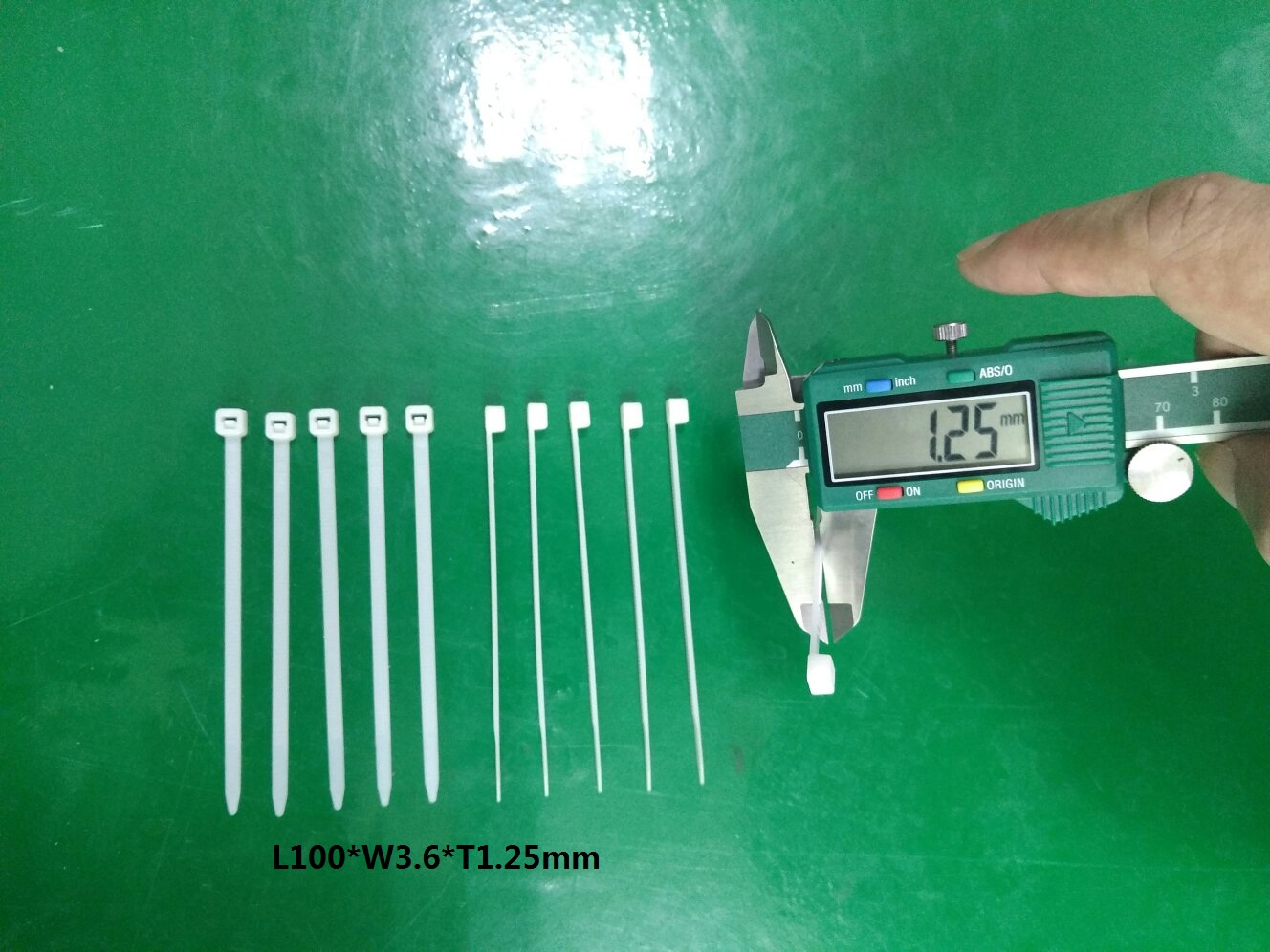

2 . Using loose cable tie W3.6 * H100mm, vibration feeding and
bundle in the gun head.
3 . Operation speed is about 0.8s and faster than by hand.
4 . Different waste material collecting methods for choice.
5 . One machine can replace at least one worker and save labor
cost.
With Swift trade terms
| Payment term | 100%TT before shipment ( negotiation available ) |
| Lead time after payment | 10 days or 15days |
| Shipping way | By sea, by air |
| Fob sea port | Shenzhen |
| Price | Fob Shenzhen / EXW |
Our Service
Inquiry. Pls contact us by email, phone, fax, Skype, whatspp,
linkedin.
Videos. Wechat, Linkedin, Youtube and facebook, you can find our
machine videos through searching Swift automation technology CO.,
LTD.
Discussions. Welcome to discuss the bundled goods, machine
specifications. OEM and ODM are accepted.
Quotation is offered.
Good after - service. Pls contact us if you have any questions.
FAQ
1. What is the sea port?
The sea ports is Shenzhen. We are a factory.
2. Could you offer free cable ties?
Yes, we could. We suggest you using our cable ties because the
quality is good and the price is low.
3. Are the machines certified CE?
Yes, all machine are certified CE, RoHS.
