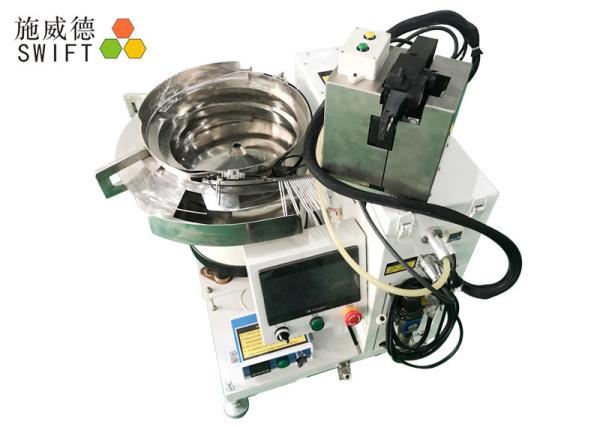

Electric Zip Tie Gun Automatic Bundling with Fast Speed Using Bulk
Cable Ties
Electric zip tie gun is an equipment that automatically bundles
goods with cable / zip ties. It is mainly used to bundle motor
coil, or bind the objects which has a small room for cable ties to
go through.
SWT36120M advantages
1. The first machine for bundling motor coil.
2. Bundling speed is fast about 1.2S.
3 . PLS control and touch screen, easy to operate.
4. Place loose cable ties into the vibration at random, 1,000pcs
cable ties in bag.
5. Automatically wrap / thread, tighten and cut off cable ties once
tread the foot pedal.
SWT36120M parameters
| Automatic cable tie tool SWT36120M– fixed gun type |
| Model | SWT SWT36120M |
| Application | Motor coil |
| Cable tie type | Loose cable ties |
| Cable tie size | width | mm | 3.6 |
| inch | 0.14＂ |
| Length | mm | 120 |
| inch | 4.72＂ |
| Tie thick | mm | 1.2 |
| inch | 0.04＂ |
| Tensile strength | IBS | 26.46 |
| KG | 12 |
| Bundling diameter | mm | Ø11 –ø15 |
| Operation speed | seconds | 1.2 |
| The host machine size | mm | L725 * W710 * H670 |
| The gun head size | mm | L331 * W282 * H189 |
| Power supply | V | AC220V, 50 / 60Hz; Euro plug |
| The gun power | v | DC48V auto switch |
| Pneumatic pressure | Kg/cm² | 5 |
How to use SWT36120M?
To avoiding the crash during shipment, the vibration bowl and the
host machine are packed in different export wooden cases. Before
the first time using, pls install this bowl to the host machine.
Place loose cable ties in the bowl – Power on – Select “AUTO” –
Place the goods on the claw – Push the pedal – Start to bundle.
Company service
Strong R & D ability: We could offer you the best tech support.
Most engineers graduated from famous university in Beijing, Harbin,
got train in Euro, ever worked in Microsoft, Whirlpool and Foxconn
etc.
Quick reply: We would reply you once receive your inquiry.
Good quality: Our machines have been used in USA, Japan, Italy,
German, England etc.
Quality authentication: ISO9001: 2015
Certificates: CE, RoHS.
Fast delivery day: 3days if in stock; general 10 – 15days.
Payment terms and package
| Payment terms |
| 1. Payment method | 70% deposit before production / 100% TT before shipment |
| 2. Delivery time | 3– 15days before confirm payment. |
| 3. Transportations | By ship, about 30days. |
| By air, about 3 – 4days. |
| By express, DHL, FEDEX, UPS, about 5 – 7days. |
| Package |
| 4. One wooden case for the host machine | L850 * W830 * H790mm ( estimated ) |
| 5. One wooden case for the vibration bowl | L700 * W600 * H950mm ( estimated ) |
| 6. Carton box for nylon cable ties if need | L530 * W350 * H285mm |
