Handheld Using Bulk Package Cable Ties Gun Automatic Bundling Up To
ø 31mm
Handheld cable tie machine to bundle objects with zip ties. You
only spend 1.0S finishing wrapping, tightening and cutting off
cable tie. Zip tie size is W 3.6 * L150mm.
Why do you choose cable tie machine?
If you use large quantity of cable ties, such as 40,000pcs per
month, that means there are at least 8workers to bind cable ties by
hand.
When use cable tie machine, you just need to buy two machines to do
the job.
Your factory will save at least 5 or 6 workers’ labor cost.
SWT36150H advantages
1 . Automatically bind and cut off cable ties. It is no problem if
you don’t want the machine to cut off cable tie. Pls inform us by
email and we would modify the system program.
2 . Automatically feed cable ties through the vibration bowl. You
don’t need to pick it up one by one.
3 . Automatically detect if it is successful to bundle the cable
tie. Or it would stop and deal with the failed cable tie.
4 . Be comfortable to hold and operate the gun head.
5 . The tightening force is adjustable.
SWT36150H basic data
| Name | Cable tie machine | Model | SWT36150H | Using type | Handheld |
| Cable tie type | Loose cable tie | Cable tie width | 3.6mm | Cable tie length | 150mm |
| Size of host machine | L890 * W900 * H790mm | Weight of host machine | 160kg | Material | Metal |
| Size of gun head | L271 * W116 * H74mm | Weight of gun head | 0.90kg | Certificate | CE |
| Electric power | AC220V, 50 / 60Hz | Power | 1000W | Pneumatic pressure | 5kg / cm² |
SWT36150H technical specifications
| Bundling Max Dia. for wire / tube | Ø31mm / Ø 30mm | Bundling Min Dia. | Ø3mm |
| Operation speed | 1.0S | Actual pneumatic pressure | 3 - 5 kg / cm² |
| Temperature | 40℃ | Qty of cable ties per time in vibration bowl | 200 – 300pcs |
Applications
Rail transportation sector
Electrical installation
Food industry
Wiring harness
Package
The machine would be packaged in wooden cases. One for the machine,
the other one is for the vibration bowl.
| SWT36150H automatic cable tie gun packing details |
| The host machine / wooden case | Weight/kg | 175kg |
| Packing Size/cm | L101 * W105 * H91cm |
| The vibration bowl / wooden case | Weight/kg | 91kg |
| Packing Size/cm | L81 * W71 * H107cm |
| Total G.W. | 266kg( estimated) |
Our service
Before sales service – our professional sales man will reply you in
time and give the suggestions.
After sales service
1 . We offer 1 year warranty and tech support forever.
2 . We offer online guide on guiding you operate the machine. In
China mainland, we can go to your factory and install the machine
for you.
Our fairs

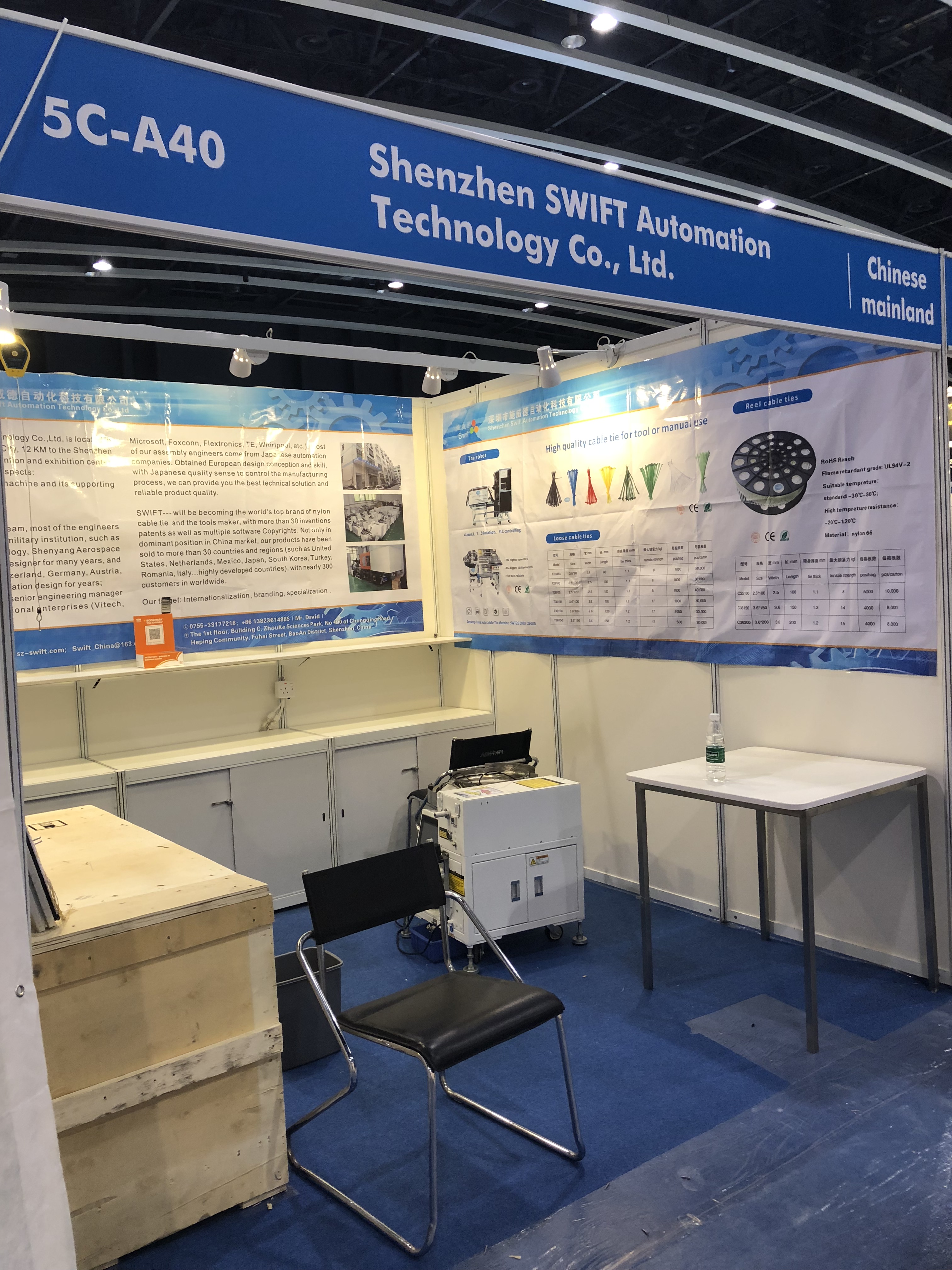

We attended Electronic Asia 2018 in HK on October.
