Desktop Type Cable Tie Tool For Automatic Bundling And Cutting SWT25100D
Cable tie tool SWT25100D looks like a desk. It could let loose
cable ties rank tidily and send them to the position of jaws, then
automatically thread, pull and tighten, cut off the waste material.
Features
1. With a large operation area. It is convenient to operate.

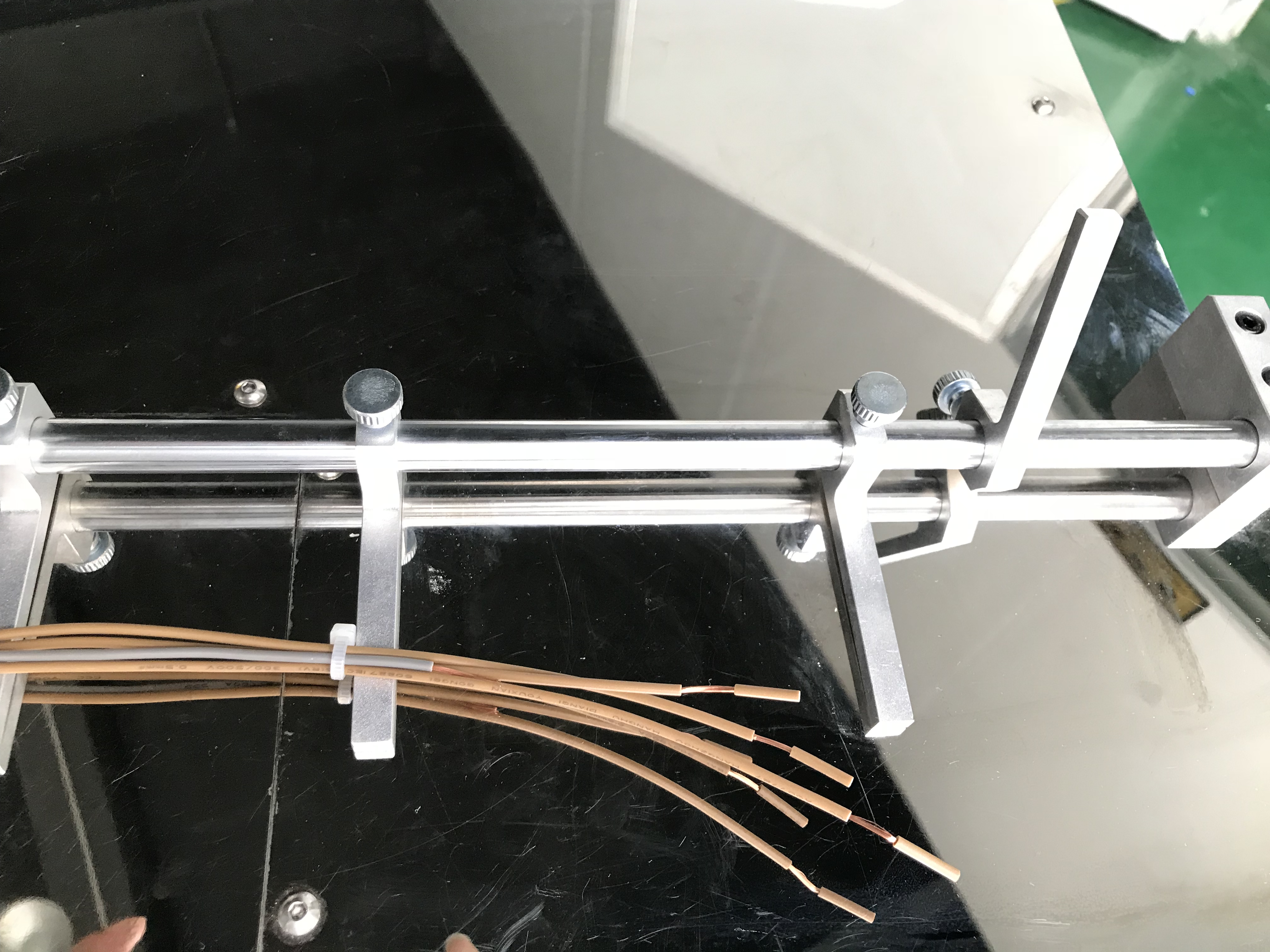

2. With a ruler. You could adjust the movable knob to mark the
length.
3. With a vibration bowl. It could sort and line up cable ties.
4. Tread the pedal, it start to bundle.
5. The binding forces could be adjusted by engineer.
6. The force is controlled by mechanical device and would keep
stable after adjust.
7. One machine can do 3workers’workload. It would help you save
labor cost.
8. With wheels.
Base data
| Name | SWT25100D |
| Description | Desktop cable tie tool for automatic bundling |
| Features and advantages | 1. Use loose cable ties T25100. 2. Tread foot pedal, automatically bundling without hands. 3. Automatically adapt objects with diameters less than 16mm. 4. The tension force is adjustable. 5. With a ruler to mark the length. |
| Bench mount kit | Unnecessary |
| Overhead suspender | Unnecessary |
| Cable ties | T25100 cable ties bulk |
| Material | Nylon 66 |
| Width | W2.5mm |
| Length | L100mm |
| Thickness | T1.1mm |
| Tie head | L4.8 * W4.8 * H3.8mm |
| Tensile strength | 8kg |
| Quantity/bag | 1,000pcs |
| Usage/per time in vibration bowl | 250pcs enough |
| Bundling Max Dia. for wire | Ø16.0mm |
| Bundling Max Dia. for tube | Ø14.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Bundling speed | 0.8S/cable tie |
| Operation | Electrical |
| Tool head power | None |
| Power supply | AC110V 50/60Hz; US plug |
| Pneumatic pressure | 3kg/cm² |
| Max power | 1,000W |
| Tension force | Adjustable |
Packing details
1pcs/wooden case.
Packing size: L1180 * W800 * H900mm; G.W.: 175kg (estimated).
FAQ
1. What is the difference compared with other similar machine?
We are the professional manufacturer of automatic cable tie tool.
SWT25100D looks more beautiful than others. What is more, it is
more durable, 10million cycles maintenance free.
2. What is the price?
Please contact our sales team, they would offer quotation to you.
3. Can you offer sample?
No, we could offer some videos to check.
4. Can I adjust the binding force?
Yes, pls let PE engineer to adjust the force.
