Bundling Medical Connector Wire Tie Tool Automatic Binding Diameter
16mm
The wire tool uses loose cable ties and can bundle medical
connectors automatically. The bundling connector max diameter is
16mm.
SWT25100H details
1. Vibration sorting and feeding. Semi-wave is enough.
2. LCD touch screen operating. You could easily know the machine
working situation.

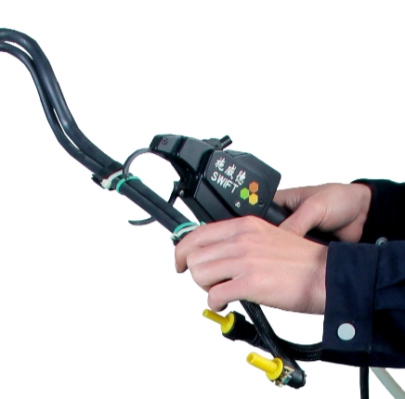

3. With a tool head. It is comfortable to hold it because of the
ergonomic hand shank design.
4. Power supply: AC220V, 50/60Hz; AC110V, 50/60Hz
5. Total pneumatic pressure: 5kg/cm²
SWT25100H technical data
| Model | Cable tie size | Qty in vibration bowl | Operation speed | Pneumatic pressure | Max Power |
| SWT25100H | Width | 2.5mm(0.1＂) | 200pcs – 300pcs | 0.7S | 6kg/cm² | 1,000W |
| Length | 100mm(4＂) |
| Tie thick | 1.1mm(0.04＂) |
| Tensile strength | 8kg |
| Power supply | AC220V, 50/60Hz ; AC110V, 50/60Hz |
Other data
| The host machine | Weight/kg | 140kg |
| Size/cm | L67 * W66 * H67cm |
| The tool head | Weight/kg | 0.86kg |
| Size/cm | L26 * W11 * T64cm |
SWT25100H advantages
1. It could use loose cable ties to bundle medical connector
automatically.
2. If the machine fails to operate cable tie, it could detect and
handle the failed cable tie by itself, and restart.
3. The operation speed can be adjusted.
4. The operation temperature of cable ties can be adjustable.
5. With a strong R and D department, tech support for all life.
Applications
Medical connectors fixed, medical PVC soft pipe, soft plastic tube
etc.
Packing details
Two export wooden cases as follows:
| SWT25100H automatic cable tie machine packing details |
| The host machine / wooden case | Weight/kg | 100kg |
| Packing Size/cm | L74 * W70 * H85cm |
| The vibration bowl / wooden case | Weight/kg | 70kg |
| Packing Size/cm | L70 * W60 * H98cm |
Transportation way as follows:
By sea (about 30days arrive), by air or by express.
Trade terms
1. 100% TT payment before shipment.
2. FOB Shenzhen or EXW or others.
3. Delivery time: 10 – 15days after confirm payment.
Our service
1. We offer tech support before/after sales and 1year warranty.
2. If have any problems, pls contact us any time and free parts
would be sent to you during warranty.
3. We can offer videos to let you know our machine easily.
4. OEM / ODM is welcomed.
FAQ
FAQ of SWT25100H automatic cable tie tool
|
Questions
|
Answers
|
1. Could I use cable ties W2.5 * L80mm in SWT25100H?
|
No, you should use plastic ties W2.5 * L100mm. Or the machine would
get something wrong.
|
2. Is it easy to operate the machine?
|
Yes, it is very easy. Pls read the English manual carefully.
|
3. What should I do if the machine gets bad?
|
Pls don't worry. We are here for you. Pls send some videos to us.
Free parts or suggestions would be offered to you.
|
