    Handheld Type Automatic Zip Tie Machine , Nylon Tie Tool With Ergonomic Hand Shank

    Ask Lasest Price
    Brand Name : Swift
    Model Number : SWT25080H
    Certification : CE
    Price : negotiation
    Payment Terms : 100% T/T
    Supply Ability : 100pcs per month
    Delivery Time : 15 working days after received your payment
    • Product Details
    • Company Profile

    Handheld Type Automatic Zip Tie Machine , Nylon Tie Tool With Ergonomic Hand Shank

    Handheld Automatic Cable Tie Tool In Nylon Cable Tie Size 2.5*080mm

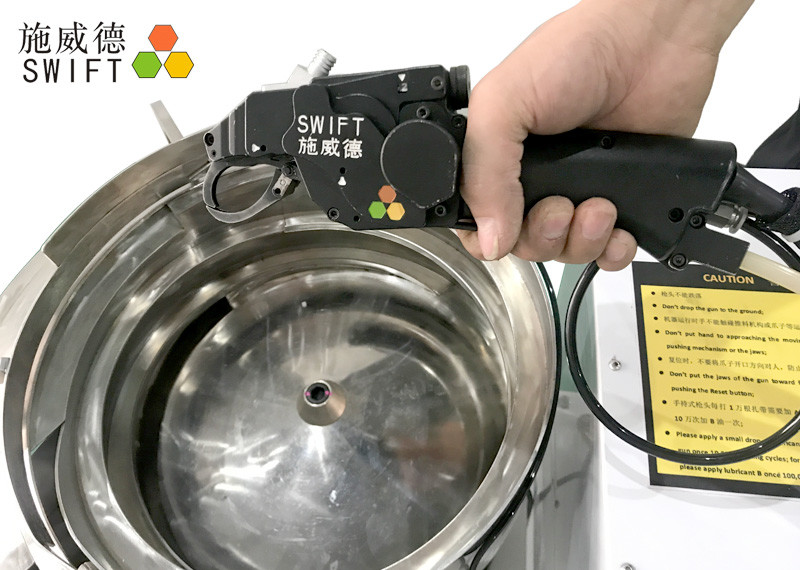

    SWT25080H is handheld type automatic cable tie machine, using cable tie W2.5 * H100mm. The gun head size is the smallest in the world. And the weight is 0.84kg.


    Description


    1 . Use bulk cable ties, vibration feeding, transferred to the Tool via hose.


    2 . Pulling the trigger, automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.


    3 . Ergonomic hand shank design, comfortable to hold & operate.


    4 . Automatically detecting cable tie jam, if there is any cable tie jammed in the Tool or in the hose, the machine would stop running and automatically clean the jammed cable tie, and then restart automatically.


    5. Temperature controlling system is to improve the cable tie toughness when using the machine and cable tie under 15℃.


    Specifications


    ModelSWT25080HSWT25100HSWT25120H

    Cable tie spec
    2.5*80mm2.5*100mm2.5*120mm
    Min banding Dia.ø2.0mmø2.0mmø2.0mm
    Max banding dia. for wireø14mmø17mmø22mm
    Max banding dia. for tubeø13mmø16mmø21mm
    operation speed0.7S0.7S0.8S
    Host size & weightL690* W670* H670mm, Weight: 140kgL725* W710* H670mm, Weight: 150kg
    gun size(L*H*T mm)245*95*64250*102*64256*108*66
    gun weight0.84kg0.85kg0.86kg
    Electrical powerHost : AC 220V 50/60 Hz
    Gun : DC24V
    Power:1000W
    Pneumatic pressure5 Kg/cm²

    FAQ


    FAQ
    QUESTIONANSWER
    Do you accept OEM order?Yes, but we should know the final user. We will keep it strictly confidential.
    What is your Pre-sales service ?We will provide you with a selection service based on your sample (tied work-piece or nylon cable tie) or a picture(better video),or an improvement on the field-related process with your company.
    Do you provide design services?we offer the design services related to nylon cable ties & tools, but there will be an additionall charge
    Can your provide an auto cable tie tools to us to test the quality?If you have a potential order, we can negotiate, or you can sent your tied parts to our factory to test
    How to control your product quality?Our factory certified to ISO 9001-2015 quality management system. We control products quality in strict according to this standard. All products are CE certified and have passed the Reach & RoHS.
    Can I modify the model number of the device after I confirm the order?If the order has not yet been produced, it can be modified and additional charges may apply. If it has been produced, it cannot be modified unless you can bear all the costs.
