    ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)

    Ask Lasest Price
    Brand Name : Original
    Model Number : ADP191ACBZ-R7
    Certification : Original
    Price : Negotiation
    Payment Terms : TT
    Supply Ability : 100
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)

    ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)

    Chips from factories. All are new and original. Pls inform us the part number and qty when to inquiry.

    Specifications of ADP191ACBZ-R7
    TYPEDESCRIPTION
    CategoryIntegrated Circuits (ICs)
    Power Management (PMIC)
    Power Distribution Switches, Load Drivers
    MfrAnalog Devices Inc.
    Series-
    PackagingTape & Reel (TR)
    Cut Tape (CT)
    Switch TypeGeneral Purpose
    Number of Outputs1
    Ratio - Input:Output1:01
    Output ConfigurationHigh Side
    Output TypeP-Channel
    InterfaceOn/Off
    Voltage - Load1.1V ~ 3.6V
    Voltage - Supply (Vcc/Vdd)Not Required
    Current - Output (Max)500mA
    Rds On (Typ)80mOhm
    Input TypeNon-Inverting
    FeaturesLoad Discharge, Slew Rate Controlled
    Fault Protection-
    Operating Temperature-40°C ~ 125°C (TJ)
    Mounting TypeSurface Mount
    Supplier Device Package4-WLCSP (0.76x0.76)
    Package / Case4-WFBGA, WLCSP
    Base Product NumberADP191

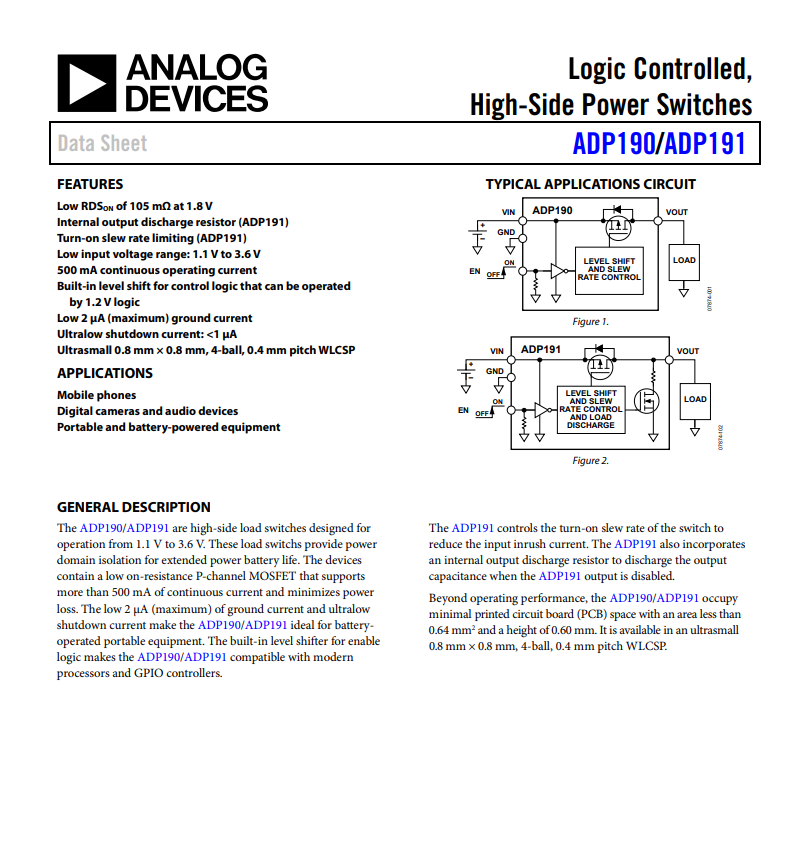

    Features of ADP191ACBZ-R7

    Low RDSON of 105 mΩ at 1.8 V
    Internal output discharge resistor (ADP191)
    Turn-on slew rate limiting (ADP191)
    Low input voltage range: 1.1 V to 3.6 V
    500 mA continuous operating current
    Built-in level shift for control logic that can be operated
    by 1.2 V logic
    Low 2 μA (maximum) ground current
    Ultralow shutdown current: <1 μA
    Ultrasmall 0.8 mm × 0.8 mm, 4-ball, 0.4 mm pitch WLCSP




    Applications of ADP191ACBZ-R7


    Microprocessor systemsAdministrator:
    Mobile phones
    Digital cameras and audio devices
    Portable and battery-powered equipmen



    Environmental & Export Classifications of ADP191ACBZ-R7

    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    REACH StatusREACH Unaffected
    ECCNEAR99
    HTSUS8542.39.0001
