    ADP195ACPZ-R7 Power Switch/Driver 1:1 P-Channel 1.1A 6-LFCSP-UD (2x2)

    Ask Lasest Price
    Brand Name : Original
    Model Number : ADP195ACPZ-R7
    Certification : Original
    Price : Negotiation
    Payment Terms : TT
    Supply Ability : 100
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ADP195ACPZ-R7 Power Switch/Driver 1:1 P-Channel 1.1A 6-LFCSP-UD (2x2)

    ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)

    Chips from factories. All are new and original. Pls inform us the part number and qty when to inquiry.

    Specifications of ADP195ACPZ-R7
    TYPEDESCRIPTION
    CategoryIntegrated Circuits (ICs)
    Power Management (PMIC)
    Power Distribution Switches, Load Drivers
    MfrAnalog Devices Inc.
    Series-
    PackagingTape & Reel (TR)
    Cut Tape (CT)
    Switch TypeGeneral Purpose
    Number of Outputs1
    Ratio - Input:Output1:01
    Output ConfigurationHigh Side
    Output TypeP-Channel
    InterfaceOn/Off
    Voltage - Load1.1V ~ 3.6V
    Voltage - Supply (Vcc/Vdd)Not Required
    Current - Output (Max)1.1A
    Rds On (Typ)50mOhm
    Input TypeNon-Inverting
    FeaturesSlew Rate Controlled
    Fault ProtectionReverse Current
    Operating Temperature-40°C ~ 125°C (TJ)
    Mounting TypeSurface Mount
    Supplier Device Package6-LFCSP-UD (2x2)
    Package / Case6-UDFN Exposed Pad, CSP
    Base Product NumberADP195

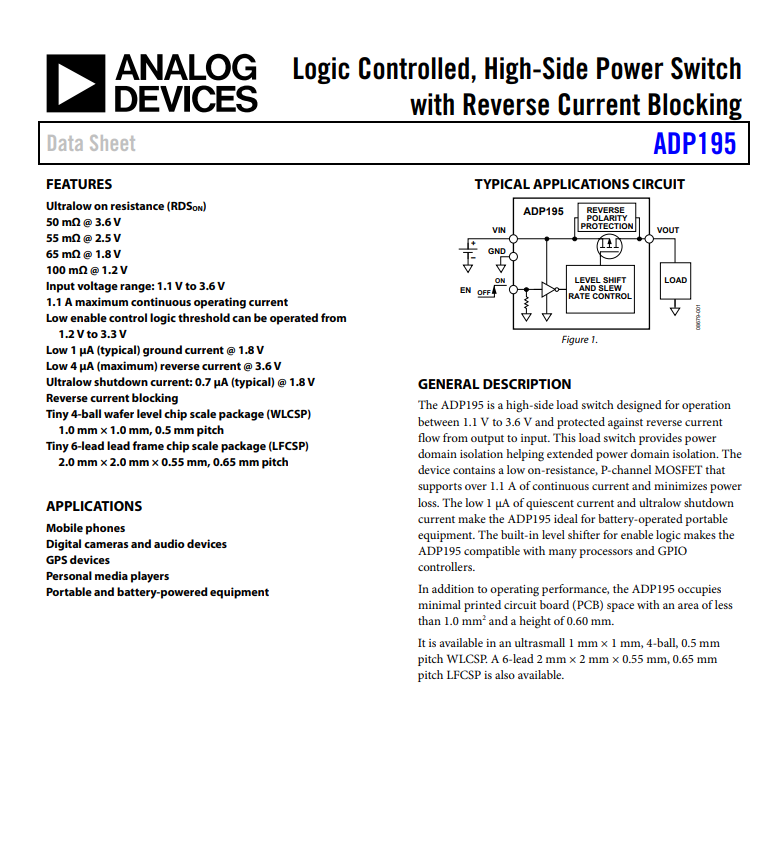

    Features of ADP195ACPZ-R7

    Ultralow on resistance (RDSON)
    50 mΩ @ 3.6 V
    55 mΩ @ 2.5 V
    65 mΩ @ 1.8 V
    100 mΩ @ 1.2 V
    Input voltage range: 1.1 V to 3.6 V
    1.1 A maximum continuous operating current
    Low enable control logic threshold can be operated from
    1.2 V to 3.3 V
    Low 1 μA (typical) ground current @ 1.8 V
    Low 4 μA (maximum) reverse current @ 3.6 V
    Ultralow shutdown current: 0.7 μA (typical) @ 1.8 V
    Reverse current blocking
    Tiny 4-ball wafer level chip scale package (WLCSP)
    1.0 mm × 1.0 mm, 0.5 mm pitch
    Tiny 6-lead lead frame chip scale package (LFCSP)
    2.0 mm × 2.0 mm × 0.55 mm, 0.65 mm pitch

    Applications of ADP191ACBZ-R7


    Mobile phones
    Digital cameras and audio devices
    GPS devices
    Personal media players
    Portable and battery-powered equipment



    Environmental & Export Classifications of ADP195ACPZ-R7

    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    REACH StatusREACH Unaffected
    ECCNEAR99
    HTSUS8542.39.0001
