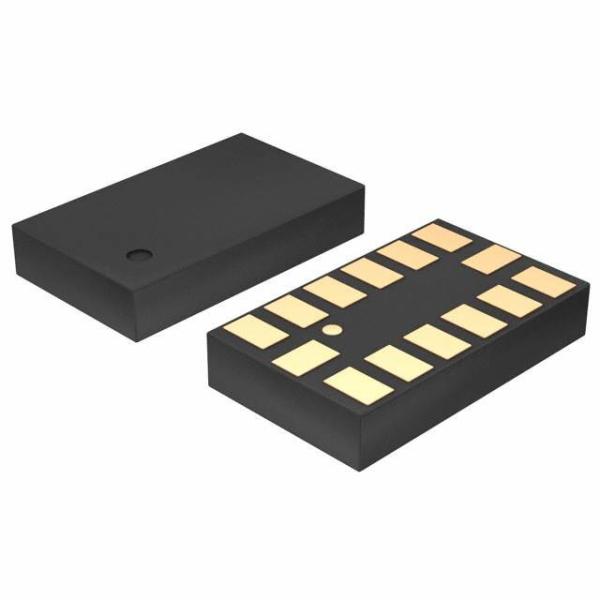

    ADXL345 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)

    Ask Lasest Price
    Brand Name : Original
    Model Number : ADXL345
    Certification : Original
    Price : Negotiation
    Payment Terms : TT
    Supply Ability : 100
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ADXL345 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)

    ADXL345 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)


    Specifications of ADXL345
    TYPEDESCRIPTION
    CategorySensors, Transducers
    Motion Sensors
    Accelerometers
    ManufacturerAnalog Devices Inc.
    Series-
    PackagingTray
    TypeDigital
    AxisX, Y, Z
    Acceleration Range±2g, 4g, 8g, 16g
    Sensitivity (LSB/g)256 (±2g) ~ 32 (±16g)
    Sensitivity (mV/g)-
    Bandwidth0.05Hz ~ 1.6kHz
    Output TypeI2C, SPI
    Voltage - Supply2V ~ 3.6V
    FeaturesAdjustable Bandwidth
    Operating Temperature-55°C ~ 105°C
    Mounting TypeSurface Mount
    Package / Case14-VFLGA
    Supplier Device Package14-LGA (3x5)
    Base Product NumberADXL345


    Features of ADXL345

    Ultralow power: as low as 23 µA in measurement mode and
    0.1 µA in standby mode at VS = 2.5 V (typical)
    Power consumption scales automatically with bandwidth
    User-selectable resolution from 10 to 13 bits
    4 mg/LSB scale factor in all g ranges
    32-sample FIFO minimizes host processor load
    Single tap, double tap, and free-fall detection
    Activity/inactivity monitoring
    Supply voltage range: 2.0 V to 3.6 V
    I/O voltage range: 1.7 V to VS
    SPI (3- and 4-wire) and I2C digital interfaces
    Flexible interrupt modes mappable to either interrupt pin
    Measurement ranges selectable via serial command
    Bandwidth selectable via serial command
    10,000 g shock survival
    Pb free/RoHS compliant
    Small and thin: 3 mm × 5 mm × 1 mm LGA package

    ENHANCED PRODUCT FEATURES

    Supports defense and aerospace applications (AQEC standard)
    Extended industrial temperature range (−55°C to +105°C)
    Controlled manufacturing baseline
    One assembly/test site
    One fabrication site
    Enhanced product change notification
    Qualification data available on request


    Applications of ADXL345


    Industrial equipment
    Aerospace equipment



    Environmental & Export Classifications of ADXL345


    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)3 (168 Hours)
    REACH StatusREACH Unaffected
    ECCNEAR99
    HTSUS8542.39.0001
