ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56)

Shenzhen Swift Automation Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56) from wholesalers

    Buy cheap ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56) from wholesalers
    • Buy cheap ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56) from wholesalers

    ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56)

    Ask Lasest Price
    Brand Name : Original
    Model Number : ADAU7002ACBZ-RL
    Certification : Original
    Price : Negotiation
    Payment Terms : TT
    Supply Ability : 100
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ADAU7002ACBZ-RL Audio Sample Rate Converter 2 Channel 8-WLCSP (0.76x1.56)

    ADAU1466WBCPZ300RL 32BIT SIGMADSP AUDIO 24K/80K Integrated Circuit Chip

    Chips from factories. All are new and original. Pls inform us the part number and qty when to inquiry.

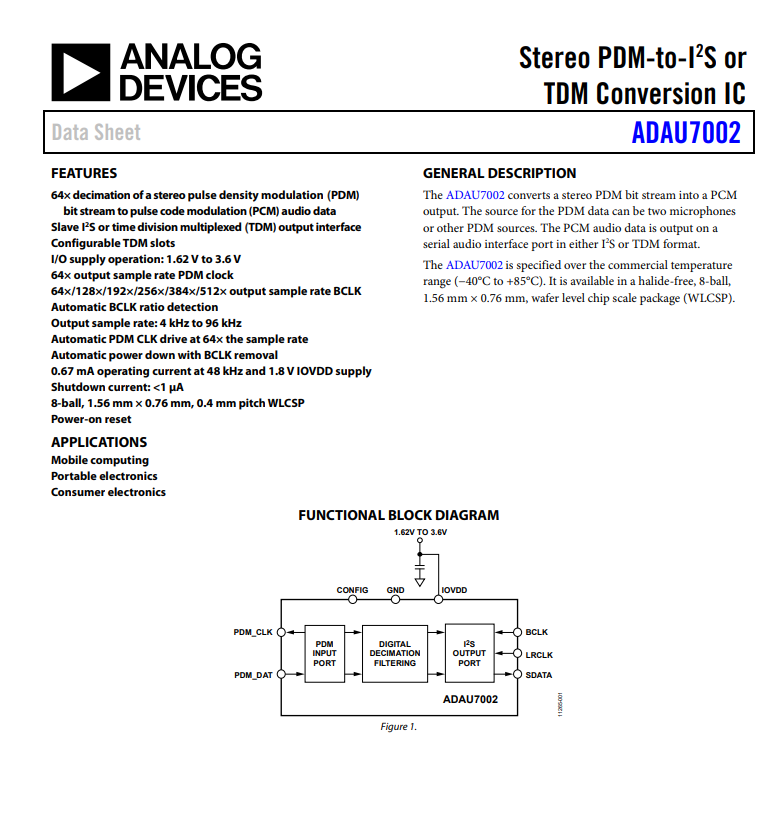

    Specifications of ADAU7002ACBZ-RL
    TYPEDESCRIPTION
    CategoryIntegrated Circuits (ICs)
    Audio Special Purpose
    ManufacturerAnalog Devices Inc.
    Series-
    PackagingTape & Reel (TR)
    Cut Tape (CT)
    FunctionSample Rate Converter
    ApplicationsConsumer Audio
    Number of Channels2
    InterfaceI2S
    Voltage - Supply1.62V ~ 3.6V
    Operating Temperature-40°C ~ 85°C (TA)
    SpecificationsPDM-to-I2S
    Mounting TypeSurface Mount
    Package / Case8-UFBGA, WLCSP
    Supplier Device Package8-WLCSP (0.76x1.56)
    Base Product NumberADAU7002


    Features of ADAU7002ACBZ-RL
    Administrator:
    64× decimation of a stereo pulse density modulation (PDM)
    bit stream to pulse code modulation (PCM) audio data
    Slave I2S or time division multiplexed (TDM) output interface
    Configurable TDM slots
    I/O supply operation: 1.62 V to 3.6 V
    64× output sample rate PDM clock
    64×/128×/192×/256×/384×/512× output sample rate BCLK
    Automatic BCLK ratio detection
    Output sample rate: 4 kHz to 96 kHz
    Automatic PDM CLK drive at 64× the sample rate
    Automatic power down with BCLK removal
    0.67 mA operating current at 48 kHz and 1.8 V IOVDD supply
    Shutdown current: <1 μA
    8-ball, 1.56 mm × 0.76 mm, 0.4 mm pitch WLCSP
    Power-on reset




    Applications of
    ADAU7002ACBZ-RL


    Mobile computing
    Portable electronics
    Consumer electronics




    Environmental & Export Classifications of
    ADAU7002ACBZ-RL

    ATTRIBUTEDESCRIPTION
    RoHS StatusROHS3 Compliant
    Moisture Sensitivity Level (MSL)1 (Unlimited)
    REACH StatusREACH Unaffected
    ECCNEAR99
    HTSUS8542.39.0001
