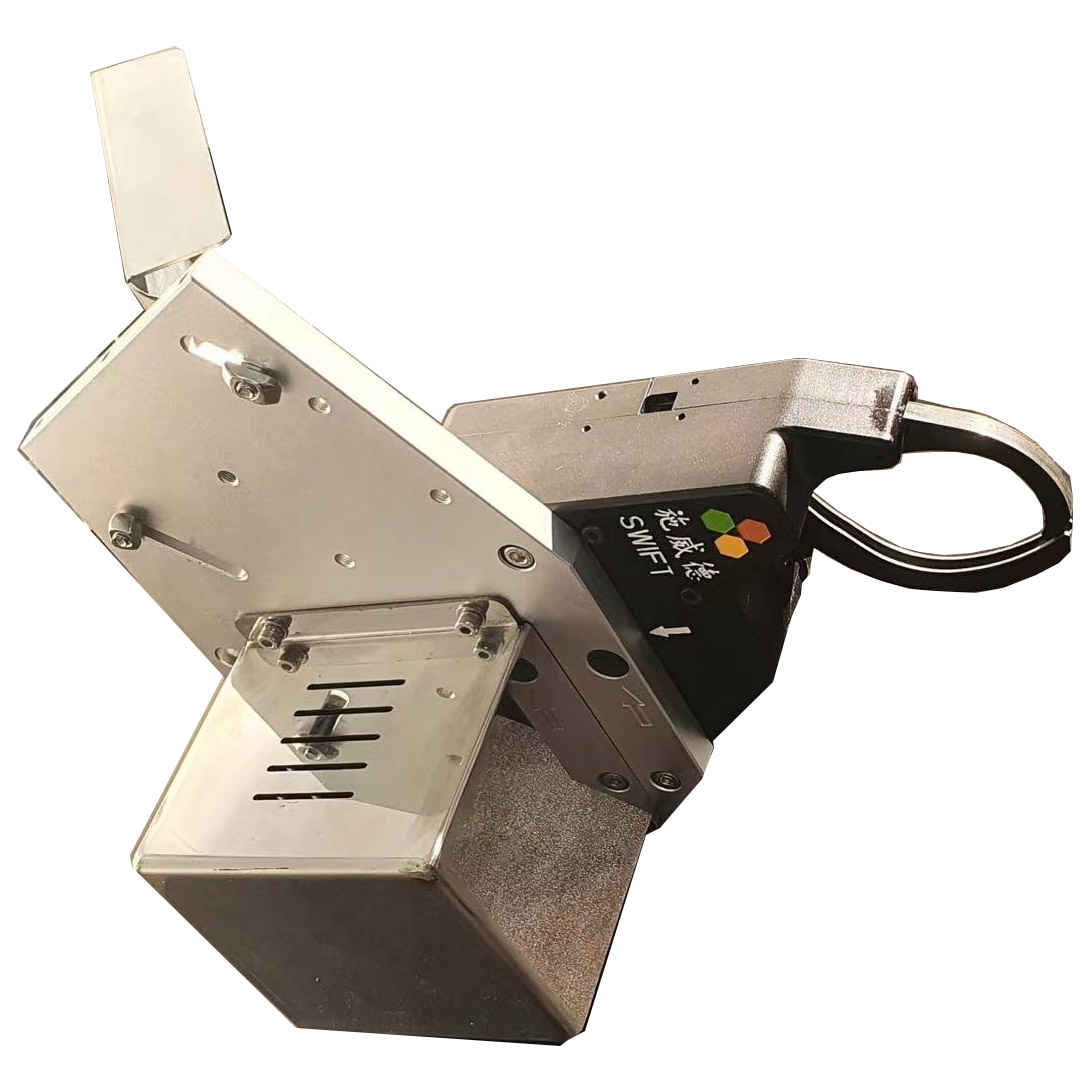

SWT36200FC Automatic Zip Tie Tool Binding Forces Adjutable 8kg

SWT36200FC Automatic Cable Tie Machine Binding Forces Adjutable 8kg

Cutting nylon cable ties without sharp edges.

Binding tensions adjustable.

Technique data for automatic wire tying tool

Features for automatic wire tying tool

1. Once operator treads the pedal, cable tie gun would start to bundle, tighten and cut off nylon cable ties.

2. It takes 1.3S to finish bundling cable ties.

3. Using reel cable ties, C36200 for SWT36200FC.

4. The binding forces are adjustable from 2kg to 8kg.

5. If there is any cable tie jammed in the tool or in the hose, cable tie gun would stop running and automatically clean them, then restart.

6. The max diameter for bundled item is 42mm.

7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²

Instructions for automatic cable tie machine

1. Load “4,000pcs reel cable ties” in host machine and pay attention on their junction.

2. Connect a fixed cable tie gun with host machine.

3. Power on, click ” Auto “, “start”.

4. Tread foot pedal, start to bundle wire harness/plastic tubes/other items.

Relater cable ties

FAQ

1. What it the MOQ?

For automatic cable tie machine: 1pcs

For nylon cable ties: 500,000pcs

2. Can I continue to touch the button “Load material” in home screen?

No, this button is used when there is no reel cable ties in host machine. If there are still reel cable ties and you click it, cable ties would be jammed in host machine.

3. How can I adjust the binding force?

There is a knob in cable tie gun. Pls turn it to adjust the force that you want.

Shenzhen Swift Automation Technology Co., Ltd. is located in the BaoAn District of Shenzhen City,12 KM to the Shenzhen Airport and near the New Convention and exhibition center. Our business majorly covers 2 aspects:

1. Automatic Nylon Cable Tie machine and its supporting equipments.
2. Nylon Cable Ties.

We have a very strong design team, most of the engineers graduated from the renowned military institution, such as HIT,Beijing Institute of Technology, Shenyang Aerospace University, worked as weapon designer for many years, and got trained and worked in Switzerland, Germany, Austria, and Czech Republicas for auomation design for years; Served as senior engineer and senior engineering manager in a number of large multinational enterprises (Vitech, Microsoft, Foxconn, Flextronics, TE, Whirlpool, etc.). Most of our assembly engineers come from丿apanese automation companies. Obtained European design conception and skill, with Japanese quality sense to control the manufacturing process, we can provide you the best technical solution and reliable product quality.
SWIFT--- will be becoming the world's top brand of nylon cable tie and the tools maker, with more than 50 inventions patents as well as multiple software Copyrights. Not only in dominant position in China market, our products have been sold to more than 30 countries and regions (such as United States, Netherlands, Mexico, Japan, South Korea, Turkey, Romania, Italy ... highly developed countries}, with nearly 400 customers in worldwide.

Our target: Internationalization, branding, specialization .
