    High Efficient Automatic Cable Tie Gun AC240V For Bind Custom Wire Harness

    Ask Lasest Price
    Brand Name : Swift
    Model Number : SWT36140H
    Certification : CE
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100pcs for one month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    High Efficient Automatic Cable Tie Gun AC240V For Bind Custom Wire Harness

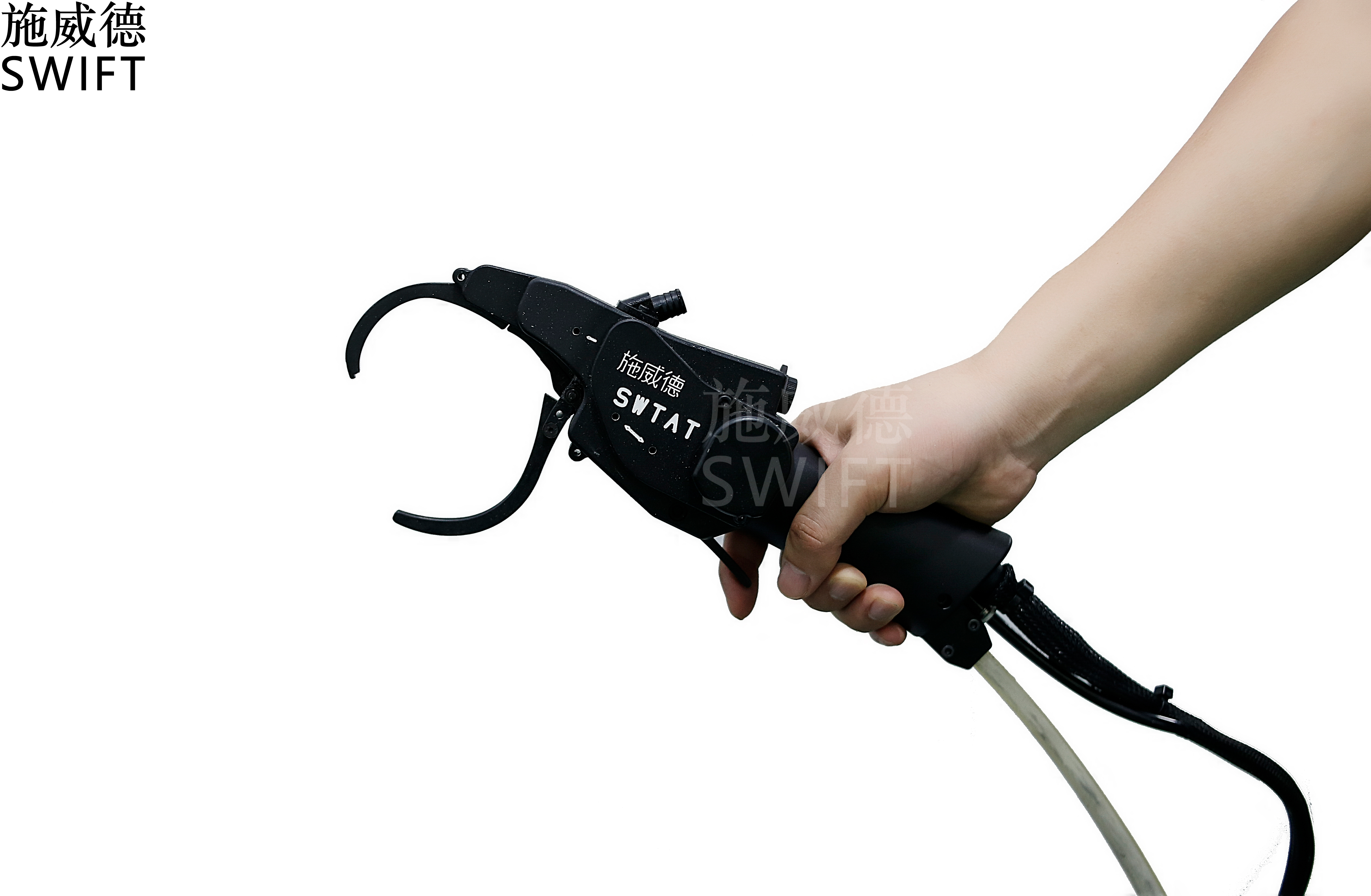

    High Efficient SWT36140H Automatic Cable Tie Gun For Bind Custom Wire Harness


    Using nylon cable ties T36140, width 3.6mm * length 140mm.

    Bundle diameters 3mm - 27mm.


    Product features automatic cable tie machine


    1. One machine uses one kind of cable ties, such as SWT36140H uses cable ties W3.6 * L140mm.


    2. The cable tie cutting tool can bundle nylon cable ties within 1second.


    3. The cable tie will be feed into the gun head once pulling the trigger and automatically wrap and cut.


    4. Touch screen to operate the machine on/off and set the parameters.


    5. When stop machine before out of office, be sure that there is no cable ties left in the vibration bowl.


    Product specifications of automatic zip tie machine


    SWT36140H
    Size Of cable sizeW3.6 * L140mmVoltageAC220V,50/60Hz
    Operation speed1S / cable tieThe gun V.DC24V(auto switch)
    Max banding Dia. for wireØ27 mmPower1000W
    Max banding Dia. for tubeØ26 mmPneumatic pressure5kg / cm²
    Min banding Dia.Ø3 mmCertificateCE, RoHS
    The bending force5 kinds of force availableThe tensile strength of SWIFT cable ties8kg
    Other cable tie machines
    ModelSWT25080HSWT25120HSWT36150H
    Operation speed0.7S/cable tie0.8S/cable tie1S/cable tie
    Max banding Dia. for wireØ14mmø22mmø31mm
    Max banding Dia. for tubeØ13mmø21mmø30mm
    Min banding Dia.Ø2mmØ2mmø3mm
    Voltage

    The host: AC220V,50/60Hz; the gun: DC24V(auto switch)


    SWIFT service


    SWIFT is a manufacturer of auto cable tie tool and nylon cable ties. We can provide you the best machine and service.


    12monthes warranty for free maintenance and parts replacement.


    In general, there will be no problem within warranty. Out of warranty, you need to pay some cost for the parts.


    OEM/ODM is available. Pls tell me more details and we need to evaluate the project.
