    AC220V Automatic Cable Tie Tool Tying Machine UL94V2 Indoor

    Ask Lasest Price
    Brand Name : Swift
    Model Number : SWT25120F
    Certification : CE
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100pcs/month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

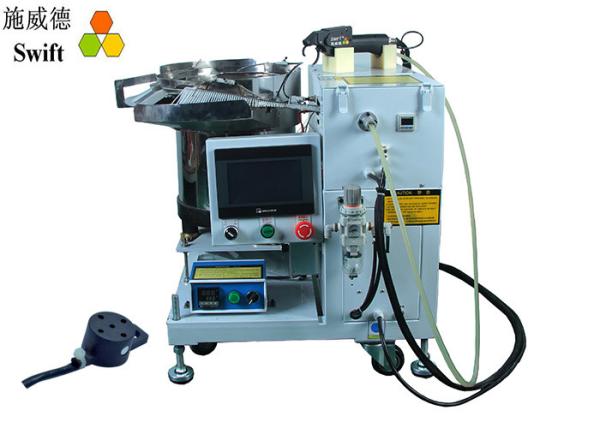

    AC220V Automatic Cable Tie Tool Tying Machine UL94V2 Indoor

    UL94V2 Indoor AC220V Automatic Cable Tie Tool Cable Tying Machine


    There are many different kinds of automatic cable tie tools in our factory, such as handheld cable tie gun, fixed cable tie gun and special cable tie gun for motor coil. Now, let’s introduce one of fixed cable tie guns, SWT25120F.


    Feature Of Automatic Cable Tie Machine

    * Supports 9.95 to 11.3Gb/s bit rates
    * Simplex LC Connector
    * Hot-pluggable XFP footprint
    * Cooled 1490nm EML transmitter, 1550nm APD receiver
    * Cooled 1550nm EML transmitter, 1490nm APD receiver
    * Applicable for 80km SMF connection
    * Low power consumption, < 3.5W
    * Digital Diagnostic Monitor Interface
    * Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
    * Electrical interface compliant to SFF-8431
    * Operating case temperature: Commerical:0 to 70 °C


    Technical data



    Model:

    SWT25120F

    ApplicationAutomatically bundle nylon cable ties in fast speed.
    VoltageAC220V, 50/60Hz
    Pneumatic pressure5kg/cm²
    Binding speed1.0S per cable tie
    Binding object diameter2mm – 22mm
    Binding forcesAdjustable
    Bundled nylon cable ties sizesW2.5 * L120mm


    Model:

    T25120

    Cable ties sizeW2.5 * L120mm
    Cable ties headL4.6L * W4.7 * H3.8mm
    ColorWhite, green, others
    MaterialNylon PA66
    Flame gradeUL94V2
    Operation temperature-30℃ - +80℃
    CertificateCE, RoHS, REACH

    Package list


    ItemQty
    Host machine*1
    Fixe cable tie gun*1
    Feeding tube*1
    A plastic box*1
    An air tube*1
    English manual*1
    Small tool case*1
    Foot pedal*1

    Application


    SWT25120F is an automatic cable tie machine with fixed cable tie gun.


    Second, it uses nylon cable ties W2.5*L120mm. The diameter of bundled items is from 2mm to 22mm.


    The items could be wire harness, plastic tubes, PCB harness, bags of powder and so on.


    RFQ


    1. Does the machine produce nylon cable ties?


    No, it doesn’t. It can automatically bundle nylon cable ties in fast speed.


    2. How long is it from fixed cable tie gun to the host machine?


    It is 0.4m. If you need it longer, pls tell us.


    3. How do you guide us if the machine has something wrong?


    We have clients from Italy, Turkey, UK, USA, Brazil and other countries. We would ask them to send detailed videos to us and help them solve problems.


    4. What is the warranty?


    1 year warranty and tech support forever. If have any questions, pls tell us.
