Electric Zip Tie Gun, Cutting Tool For Nylon Strong Cable Ties
The zip tie gun can bind the goods using cable ties. This tool uses
the zip tis size W3.6 * H150mm. You can use it in the factory. Pls
be sure that there is air source there too.
SWT36150H technical parameters
| Item | Description | Value |
| 1 | Model | SWT36150H | -- |
| Handheld type available | -- |
| 2 | Cable tie size | Width | 3.6mm |
| Length | 150mm |
| 3 | Operation speed | For every zip tie | 1.0S |
| 4 |
Max banding Dia.
| For wire | Ø 31mm |
| For tube | Ø 30mm |
| 5 | Min banding Dia. | For tube / wire | Ø 2mm |
| 6 | The feeding hose | Length | 2.2m |
| 7 | The bending force | Adjustable(2kgf - 8kgf) |
| 8 | Voltage | AC220V, 50 / 60Hz |
| Different plugs |
| 9 | The gun V. | DC24V (switch automatically) |
| 10 | Power | 1KW |
| 11 | Pneumatic pressure | 5kg / cm² |
Zip Tie Tool SWT36150H Features

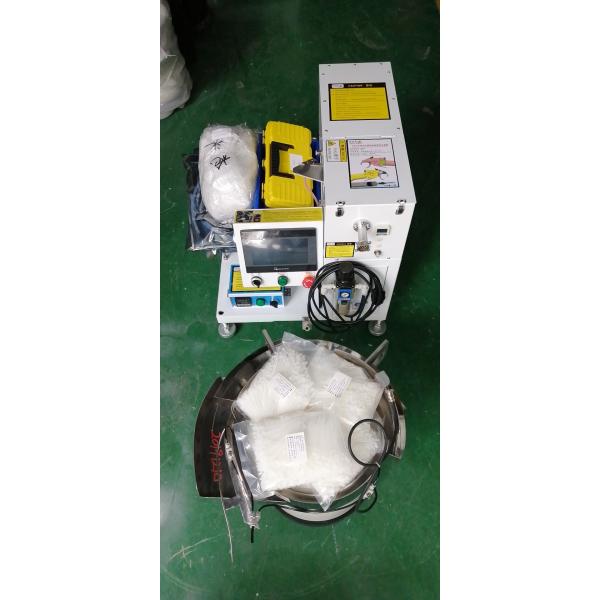

1. SWT36150H : A host machine, a handheld cable tie gun and a
vibration bowl.
2. After clicking ''Start", nylon cable ties would be sorter in the
vibration bowl. Every time, operator can put about 200pcs loose
plastic ties into it.
3. Once push the trigger, the zip tie gun starts to lock and cut
off nylon cable ties. The speed is 1.0Seconds every zip tie.
4. In the cable tie gun, there is a knob to set the bundle forces.
5. If cable tie is jammed in the gun, it would be blowed out
automatically. Or you can push longer the trigger.
6. If the machine has anything wrong, it would alarm and try to
solve it by itself.
7. Voltage: AC220V, 50/60Hz
8. The machine can automatically bundle different diameters objects
and you don't need to set every time. What you do is to touch the
trigger. These diameters must be less than the max bundle diameter
for the machine.
Product parameters
1 . The weight of the gun tool is 0.9kg. The size is L257 * W73 *
H74mm.
2 . It is suitable that pneumatic pressure is between 0.3mpa -
0.5mpa.
3 . The tensile strength: 14kg.
Applications
All kinds of wiring harness.
The bottles of peanut oil.
The auto parts with wires
Others
FAQ
1. What equipment do you have?
We are automatic cable tie machine manufacturer.
2. How long is the production time?
It takes about 10days or 15days.
3. Can I send you our sample products?
Yes, you can send them to our factory in Shenzhen. We would check
and test them using our machine.
4. Does the bundle diameter have to be set each time(Manual)?
No, it doesn't. The machine could automatically bundle different
diameters objects and you don't need to set every time. It is
automatically.
