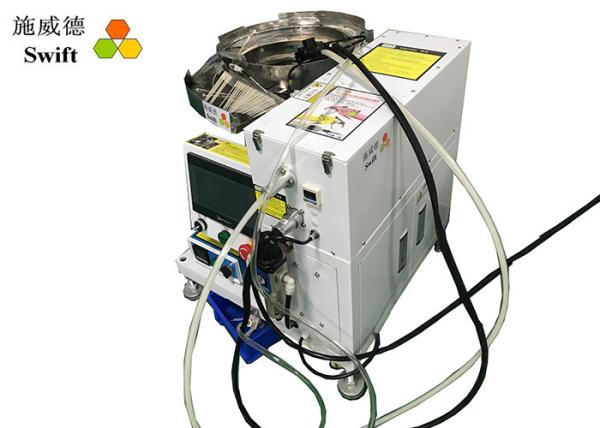

SWT25100H Auto Bundle gun China packing machine for nylon cable
ties saving time
SWT25100H has a handheld cable tie gun and a host machine. It can
pack a cable tie in 0.7 second. Automatic cable tie machine can
save 2 or 3 workers. It is faster, stable and efficient.
Features
1. Put loose cable ties(200pcs -300pcs every time) into the
vibration bowl.
2. Once operator pulls the trigger in the cable tie gun, cable tie
would be packed, tightened and cut off. And the waste material also
would be collected into a box through a transparent tube.
3. The packing speed is 0.7S per cable tie.
4. It can improve the work efficiency, save time and labor cost.
5. The binding forces are adjustable. Bigger number, Bigger binding
force.
| The binding forces |
| Number | 0 | 1 | 2 | 3 | 4 |
| Force value | 2kg | 3.5kg | 5.0kg | 6.5kg | 8.0kg |
6. Be suitable for tightening those components which has step
features.
7. Voltage: AC220V, 50/60Hz, one phase; Pneumatic pressure:
5kg/cm².
Technical data
| Model | SWT25100H |
| Voltage | AC220, 50/60Hz, 1phase |
| Pneumatic pressure | 5kg/cm² |
| Power | 1,000W |
| Bundle speed/single working time | 0.7S |
| Applicable nylon cable ties | T25100, W2.5 * L100mm |
| Max bundle diameter | 18mm |
| Min bundle diameter | 2mm |
Machine structures
1. The vibration bowl: put nylon cable ties into it, then they
would be managed one by one. Pls don't put too much, or the
vibrating effect will not be very good.
2. The handheld cable tie gun: It is ergonomic hand shank design,
comfortable to hold and operate.
3. Pressure sensor: detect the pressure and detect if cable ties
are jammed.
4. The feeding tube: it is connected the cable tie gun and the host
machine. Cable ties would be blown into the cable tie gun through
it.
Packing info
| Item | Packing size | G.W./kg | N.W./kg |
| Host machine/wooden case | 74cm * 70cm * 85cm | 97kg | 75kg |
| Vibration bowl/wooden case | 67cm * 55cm * 63cm | 66kg | 52kg |
FAQ
| Questions | Answers |
| 1. Do you provide design services? | 1. We offer the design services related to nylon cable ties and
tools, but there will be an additionall charge. |
| 2. Do you have auto cable tie tools warranty? | 2. Yes, our auto cable tie tools have 1 year warranty. |
| 3. What's the lead time of the auto cable tie tools? | 3. 10-15days. |
| 4. What is your minimum order quantity? | 4. For auto cable tie tools, MOQ:1 pcs. For aylon cable tie,MOQ:200,000 pcs |
