SWT25120H Automatic cable tie packing machine for nylon plastic ties fast bundle 0.7S

Once pulling the trigger, automatically feeding and bundling nylon cable ties. One machine can replace 2 or even more workers.

Product features

1. PLC control system and touch screen,

2. Put nylon cable ties into vibration bowl, they would be automatically loaded and feed into the gun. Don’t put too much every time, 200pcs-300pcs is enough.

3. The binding forces are adjustable by turning a knob. The number is bigger, the force is bigger. The max number is ”4” and it means 8kg.

4. Automatically locking nylon cable ties, cutting off and collecting the waste material into a box.

5. The locking/cutting/collecting speed is 0.8S.

6. The max bundle diameter is 22mm. As long as less it, the machine can automatically adapt different diameters objects.

7. Voltage: AC220V, 50/60Hz, 1phase; Pneumatic pressure: 5kg/cm²

Technique data

Packing machine introduction

1. Vibration bowl: Pls connect with the host machine. Turn on, choose 4 or 5.

2. The handheld cable tie gun: pulling the trigger, starting to lock, tighten and cut off cable ties.

3. The feeding tube: transfer cable ties into cable tie gun

4. Transparent tube: collect the waste material into a box.



Packing data

Applications

Cable binding: wire harness assembly in appliance

Goods fixing and packing: silicon tubes fixing, bags sealing and packing

Related automatic cable tie machines

FAQ

1. Why cable ties are jammed in vibration bowl?

Put too much cable ties in here. Pls put 200-300pcs per time.

2. Can the machine SWT25120H deal with 2.5*100mm cable ties?

No, it can’t and it deals with 2.5*120mm cable ties. The vibration bowl can load one kind of material and cable tie gun can bundle one too.

3. What certificates do you have?

CE, RoHS and ISO9001:2015.

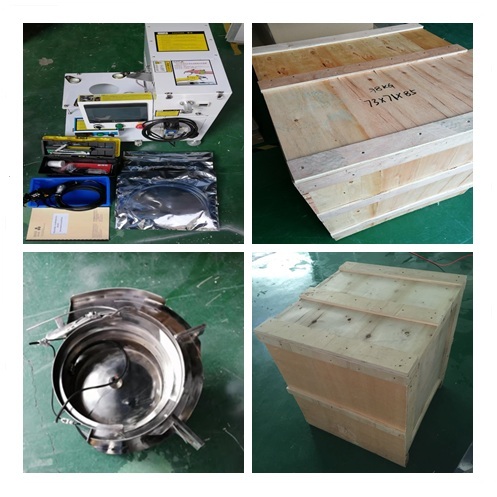

Packing

Shenzhen Swift Automation Technology Co., Ltd. is located in the BaoAn District of Shenzhen City,12 KM to the Shenzhen Airport and near the New Convention and exhibition center. Our business majorly covers 2 aspects:

1. Automatic Nylon Cable Tie machine and its supporting equipments.
2. Nylon Cable Ties.

We have a very strong design team, most of the engineers graduated from the renowned military institution, such as HIT,Beijing Institute of Technology, Shenyang Aerospace University, worked as weapon designer for many years, and got trained and worked in Switzerland, Germany, Austria, and Czech Republicas for auomation design for years; Served as senior engineer and senior engineering manager in a number of large multinational enterprises (Vitech, Microsoft, Foxconn, Flextronics, TE, Whirlpool, etc.). Most of our assembly engineers come from丿apanese automation companies. Obtained European design conception and skill, with Japanese quality sense to control the manufacturing process, we can provide you the best technical solution and reliable product quality.
SWIFT--- will be becoming the world's top brand of nylon cable tie and the tools maker, with more than 50 inventions patents as well as multiple software Copyrights. Not only in dominant position in China market, our products have been sold to more than 30 countries and regions (such as United States, Netherlands, Mexico, Japan, South Korea, Turkey, Romania, Italy ... highly developed countries}, with nearly 400 customers in worldwide.

Our target: Internationalization, branding, specialization .
