    SWT36100H Handheld 0.8S Automatic Cable Tie Tool

    Ask Lasest Price
    Brand Name : SWIFT
    Model Number : SWT36100H
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100pcs/month
    Delivery Time : 10 - 15days
    • Product Details
    • Company Profile

    SWT36100H Handheld 0.8S Automatic Cable Tie Tool

    SWT36100H Handheld Automatic Cable Tie Gun For Wire Harness In Board


    Handheld cable tie gun is connected with the host machine. There is a 2.2m length feeding tube between the cable tie gun and the host. This type machine often used to bundle wire harness in board or in home appliance. Such as oven wire harness, air condition wire harness, rice cooker wire harness etc.


    Technical data


    ModelSWT36100H
    Cable tie sizeW3.6 * L100mm(Nylon cable ties)
    Bundle diameters range2mm – 18mm
    Bundle speed0.8S
    Tension forces(Adjustable)0(2kg), 1(3.5kg), 2(5.5kg), 3(6.5kg), 4(8kg)
    Cable tie gun weight0.86kg
    Cable tie gun voltageDC24V(Auto switch)
    Host machine voltageAC220V, 50/60Hz
    Power1,000W

    Features


    1. There is a mobile handheld cable tie gun. And it could automatically bundle, tighten and cut off nylon cable ties after be touched the trigger.


    2. Vibration bowl can sort nylon cable ties one by one. They would be transferred into the cable tie gun.


    3. The excess waste cable ties would be collected into a plastic box.


    4. Need to use electricity and air.


    Instructions


    1. Put nylon cable ties into vibration bowl.


    2. Adjust the knob to the required tension force for cable ties.


    3. Place the bundled objects into the middle of Jaws of cable tie gun.


    4. Touch the trigger, cable ties would be wrapped the objects, tightened and cut off. The cable tie gun would cut the excess tie when it reaches the tension.


    What is automatic cable tie gun?


    Automatic cable tie gun is an automatically wrapped, tightened and cut off cable ties tool. Worker can finish the bundle action without hand-wrapping/tightening/cutting. It could improve the bundle efficiency and reduce the labor intensity of workers. The machine bundle speed is 0.7S – 1.3S.


    Packing info


    ItemSizeG.W./kgN.W./kg
    Host machine/wooden case73*70*86cm9373
    Vibration bowl/wooden case72*56*63cm6653

    Why you need automatic cable tie gun?


    1. You simply aim at the bundled wire harness with cable tie gun and then touch the trigger to quickly fasten cable ties.


    2. It is easy to finish bundling lots of nylon cable ties in short time.


    3. A cable tie gun can replace 2 workers, save labor cost and time.



    FAQ


    1. What is the lead time?


    10-15days.


    2. Why do nylon cable ties jam on the vibration bowl?


    Please check whether the interface between the vibration bowl and the machine is well connected. After reconnecting the interface, tighten the four small fixing screws of the vibration bowl, allow the vibration bowl to be full of nylon cable ties before starting work. In addition, many burrs or deformations of nylon cable ties can also cause jamming, and you need to pick out the bad cable ties.

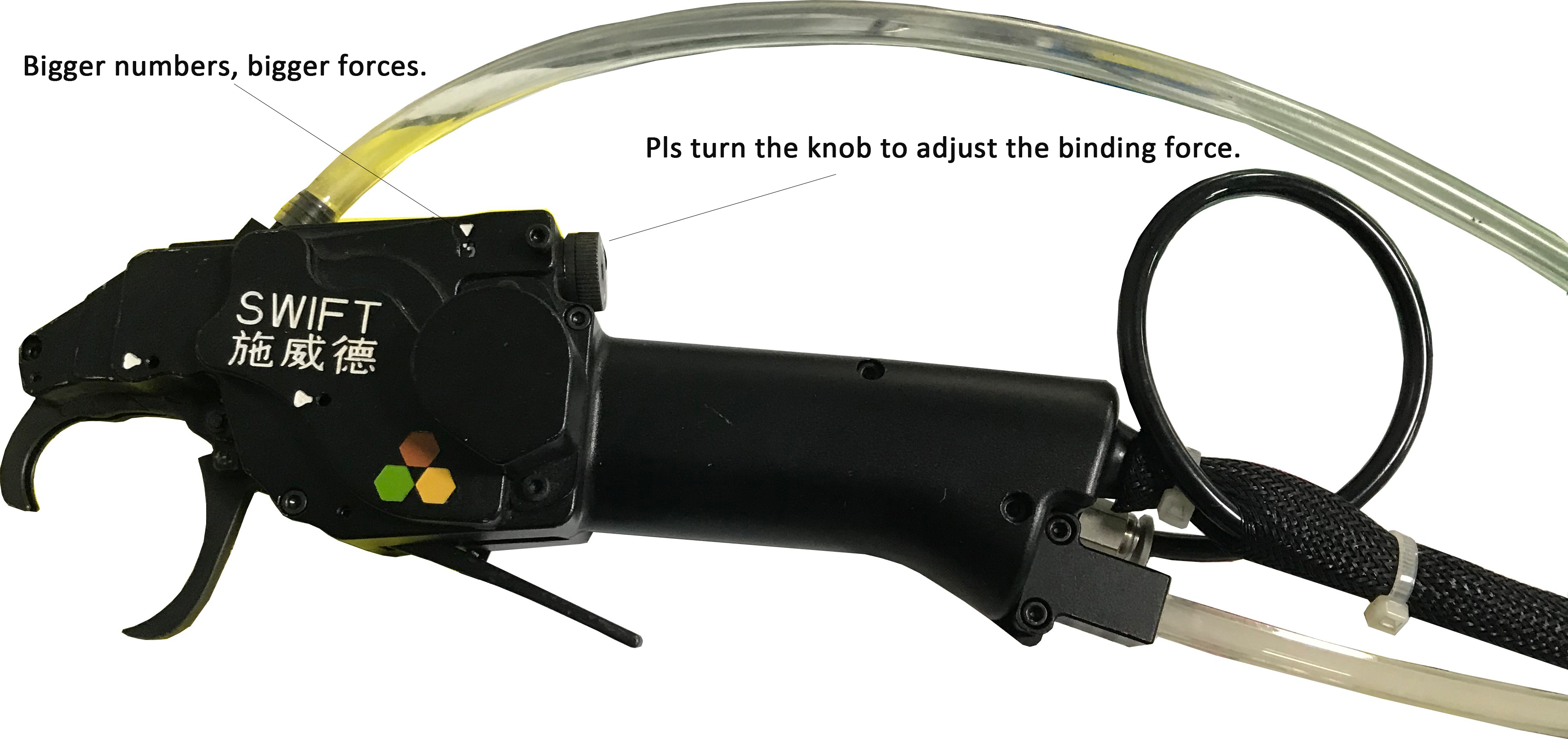

    3. How do I adjust the binding force?


    In handheld cable tie gun, there is a knob to adjust the force. Near the knob, there is a small window and you can see some numbers. Bigger numbers means bigger forces.
