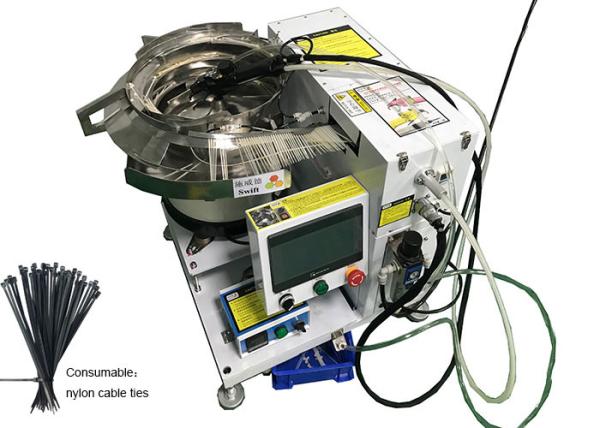

Tying Fast 1.0S 1000W Automatic Cable Tie Machine adjustable force
Machine case
Christmas lights/theme applications. To get information, please
contact our sales team.
Application scope
Applicant cable ties: W3.6*L150 * T1.2mm
Applicant products: Christmas lights of horse, stars shapes, wire
harness etc.
Industry: lights decoration on holidays, kinds of wire harness,
silicone tubes or connectors etc.
Technical parameters
| Item | Data |
| Automatic cable tie machine model | SWT36150H |
| Bundle speed | 1.0S per cable tie(Related to product size) |
| Applicable cable ties model | T36150 |
| Applicable length/width/thickness of cable ties: | 150mm/3.6mm/1.2mm |
| Applicable wire harness/tubes diameters | ø2mm – ø31mm for wire harness; ø2mm – ø30mm for tubes |
| Voltage | AC220, 50/60Hz |
| Power | 1,000W |
| Pneumatic pressure | 5kg/cm² |
| Host size | L900 * W890 * H790mm |
| Handheld cable tie gun size | L271*W116*T74mm |
| Handheld cable tie gun weight | 0.9kg/pcs |
Working process
Operation process: put nylon zip ties into vibration bowl – load
and distribute cable ties – aim at wire harness/tubes or other
products – pull the trigger and finish bundle
Nylon cable ties requirements
1. Main size: W3.6*L150*T1.2mm;
2. Head size: L6.5*W6.5*H4.7mm;
3. Material: nylon PA66
4. Tensile strength: 14kg
5. Shape: straight and strong, no burr/flash
Functions
1. Automatically wrapping, tightening and cutting nylon cable ties
in 1.0S.
2. The tightening force is adjustable.
3. The waste of cable ties can be collected into a tin.
4. Auto detecting fail: if cable tie is jammed in the machine, the
machine would stop and clean it automatically, then restart.
5. Could be applied to automation line with a robot.
6. The bundle diameters: ø2mm -ø31mm. It can’t bundle products
whose diameter is bigger than 31mm.
7. Ergonomic hand shank design, comfortable to hold and operate.
8. Pneumatic pressure is at least 5kg/cm².
Shipment
1. Package: wooden cases.
2. By sea, FedEx/UPS, DHL
3. Delivery time: 12days.
FAQ
| Questions | Answers |
| 1. Can we use our cable ties in your machines? | 1. We can customize one based on your cable ties. But at first,
please send some to our factory to check the quality. Cable ties
must be straight, stronger, no burr/flash. |
| 2. Can we use 210mm cable ties? | 2. No, the longest cable ties are C36200, W3.6*L200mm. |
| 3. What would we do if there is a problem? | 3. Please take a video to us, including touch screen, cable tie gun
and the host machine situations. Then we would guide you how to
solve. |
| 4. Do you have a manual, including the maintenance? | Yes, every machine has its English manual, including all details. |
| 5. Where is your factory? | In Shenzhen, China. |
