    Adjustable Tension Force 17mm Bundle Cable Tie Machine

    Ask Lasest Price
    Brand Name : SWIFT
    Model Number : SWT25080F
    Certification : CE and RoHS
    Price : Negotiation
    Payment Terms : 100% T/T before ship
    Supply Ability : 100pcs/month
    Delivery Time : 10 - 15days
    • Product Details
    • Company Profile

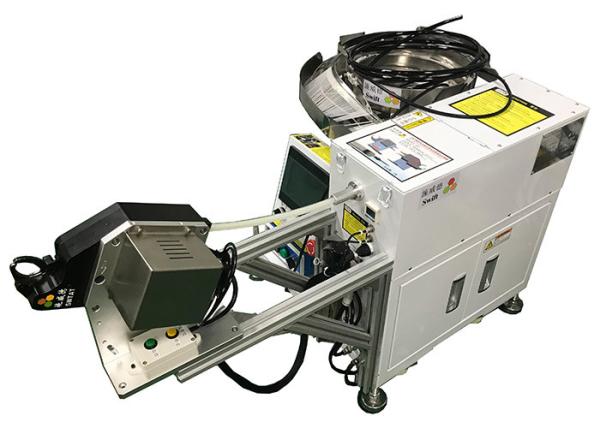

    Adjustable Tension Force 17mm Bundle Cable Tie Machine

    Adjustable Tension Force 17mm Bundle Cable Tie Machine

    SWT25080F automatic tie wrap machine can bundle nylon zip ties T25080. It is useful to improve the bundle speed and increase the products capacity.

    Operation process of automatic tie wrap machine

    Put nylon cable ties in the feeder bowl – rearrange cable ties – touch the trigger in the tie gun – finish bundle – collect the waste into a box.

    Technical data if automatic bundle cable tie machine


    ItemDataRemark
    Automatic cable tie gun modelSWT25080FCable tie gun is fixed in the table.
    Bundle speed0.9S per cable tie
    Applicable cable ties modelT25080
    Applicable length/width/thickness of cable ties80mm/2.5mm/1.1mmGood quality nylon ties
    Applicable wire harness/tubes diameters

    ø2mm – ø10mm for wire harness;
    ø2mm – ø8mm for tubes

    Related with product material
    Only cable tie gun powerDC48V
    Machine power1,000W
    Pneumatic pressure5kg/cm²
    VoltageAC220, 50/60HzDifferent plugs available
    Fixed cable tie gun weight4.0kg/pcs
    Bundle productivity3,000pcs/hRelated with product size
    Bundle tension forceAdjustable, max 80N20 - 80N


    Nylon cable ties requirements of automatic cable tie machine

    1. Cable ties material: good quality nylon PA66

    2. Cable ties size: W2.5 *L80 * T1.1mm; head size: L4.8*W4.8*H3.8mm

    3. Tensile strength: 8kg

    4. Shape: no burr/flash, without deformed

    Functions of automatic cable tie gun

    1. High level automation: treading foot pedal, automatically finishing cable ties wrapping, tightening and cutting.

    2. The waste material also would be collected into a box.

    3. The bundle speed is 0.9S per cable tie. It is 2times faster than by-hand bundle.

    4. PLC control system and touch screen. It is easy to manage parameters.

    5. The bundle quality is good. And the binding effect is consistent.

    6. High steady. The machine can keep working 8hours or even more.

    7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²



    About packing


    ItemPackagePacking sizeQtyN.W./kgG.W./kg
    Vibration Bowl for SWT25080F automatic cable tie machinewooden case67*55*63cm15266
    Host for SWT25080F automatic cable tie machinewooden case74*70*85cm179101
    Nylon cable ties T25080Caton box54*37*29cm6,000pcs/box1314

    About delivery


    Lead time for machine: 10-15working days.


    Lead time for nylon cable ties: 10days


    FAQ

    1. Do you have service centers in other countries?


    No, we don’t. If have any doubts, pls free to contact us.


    2. Why do you ask us to measure the bundled product diameter?


    Because one machine has its own max bundle diameter, and it can’t bundle the bigger.


    3. What is the difference between fixed cable tie gun and desktop cable tie machine?


    Desktop cable tie machine don’t have alone cable tie gun. It just has jaws and can't bundle objects with step features.
