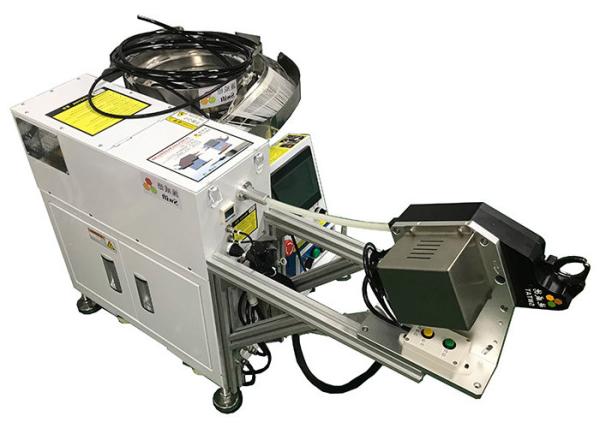

Electric Tying Nylon Zip Ties 1800pcs/H Of Automatic Cable Tie Gun
Automatic cable tie gun can automatically tie nylon zip ties and
bind about 1800pcs in a hour.
It is faster than by manual and doesn’t hurt hands.
Features of automatic cable tie machine
1. Automatic cable tie machine realizes bundling loose nylon tie
wraps automatically.
2. The nylon cable tie machine asks good nylon cable ties that are
without deform/burr/flash and are stronger.
3. The cable tie gun can bundle product diameters from 2mm to 18mm.
4. Automatic tie wrap machine takes 0.9seconds to perforate,
tighten and cut nylon tie.
5. The tightening forces are adjustable. Nylon cable tie would be
cut off once it is reached.
6. The cable tie gun is fixed. Operator can hold products by hands.
7. Pneumatic pressure: 5kg/cm²; Voltage: AC220V, 50/60Hz
Specifications of nylon cable tie machine
| Model | SWT25100F |
| Tie gun type | Fixed cable tie gun |
| Cable ties model | T25100 |
| Cable tie size | W2.5 * L100mm(general and good nylon cable ties) |
| Cable ties material | Nylon PA6.6 |
| Min banding Dia. | Ø2 mm |
| Max banding dia. | Ø18 mm |
| Operation speed | 0.9s/cable tie |
| Electrical power | Host: AC 220V, 50/60 Hz, different plugs |
| Tie gun: DC 48V(automatic switching) |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1KW |
| Maximum tension force | 80N, adjustable |
| Productivity | 1500 - 1800 pcs./h |
| Weight | Host:140 kg ( With 4 wheels, move easily ) |
| Tie gun: 4kg |
| Size | Host: L670 * 660 * 670mm |
| Gun: L278 * W240 * H149mm |
| Certificate | CE & RoHS |
Application of automatic cable tie machine
1. Wire harness: harness management of home appliance; harness in
the board.
2. Soft tubes/copper tubes fixed.
3. Fixing circuits in lighting, motors, electronic toys and other
products.
Advantage of nylon cable tie machine
1. Automatic cable tie machine can save 2 workers’ cost, even more.
2. Automatic cable tie gun can meet the fast speed of production
line.
3. Automatic cable tie gun can be applied to full automatic line.
4. It is easy to adjust the tension forces by turning a knob in the
tie gun.
5. It is very important for automatic cable tie machine to work
stably. And our factory has developed them over 8 years and always
offers the best service and technology to help clients.
6. The cable tie gun can be fixed anywhere you want.
7. CE, RoHS certificates
About packing
Automatic nylon cable tie machine would be packed in wooden cases.
Packing list
| The host machine for SWT25100F | *1 |
| The vibration bowl for SWT25100F | *1 |
| The FIXED cable tie gun for SWT25100F | *1 |
| The tool kit | *1 |
| The English manual | *1 |
Packing information
| Item | Packing size | G.W./kg | N.W./kg |
| The host and others | 78*70*80cm | 90kg | 70kg |
| The bowl | 65*54*65cm | 70kg | 58kg |
About delivery
1. Lead time for machine: about 10-15working days.
2. Lead time for cable ties: about 10 days.
FAQ
1. Does automatic cable tie machine SWT25100F use different cable
ties?
No, it doesn’t. It can use T25100 cable ties.
2. Does cable tie gun work only?
No, it can’t work without the host machine. Nylon cable ties can’t
be transferred into the tie gun.
3. Can we adjust the binding forces?
Yes, please turn a knob to adjust them. The max force is 80N.
