Stainless Steel Shell 1.0S 80N Automatic Tie Wrap Machine

1S/pcs Operation Speed 5,000pcs Reel Cable Ties For Handheld Tie Gun SWT25100HC

1. Applicant nylon cable ties: C25100, 5,000pcs nylon ties in a reel.

2. Bundle capacity: 2,400 - 3,000pcs/hour. The bundle speed is 1second per cable tie but operator may spend 1S-1.5S to hold on wire harness or other products.

Features of nylon cable tie machine

1. There are 5,000pcs cable ties in reel. Operator doesn't have to put nylon cable ties into the bowl often.

2. Handheld tie gun is light, the weight is 0.86kg. And it is comfortable to hold and operate.

3. The waste could be collected into a box.

4. With PLC control system and touch screen. It is easy to manage the parameters.

5. If there is any cable ties jammed in the hose or tie gun, the automatic cable tie machine would stop running and clean them, then restart.

6. Air source supply: 5kg/cm²; Voltage: AC220V, 50/60Hz

7. Shell material: stainless steel(customize)

Specifications of cable tie gun

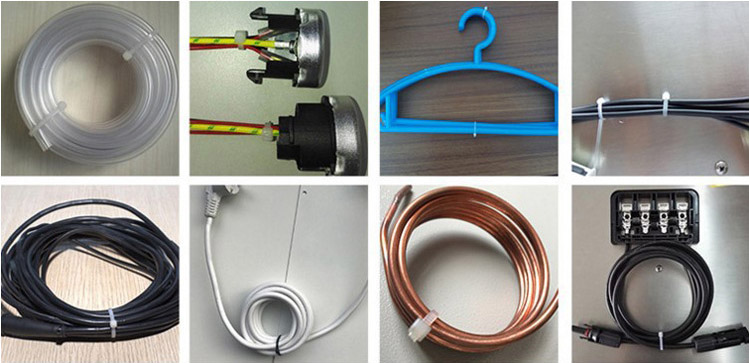

Application of automatic cable tie machine

1. Wire harness in the board, wire harness in home appliance.

2. Silicone tubes/connectors

3. Copper tubes or others.

Advantages of handheld cable tie gun

1. The automatic cable tie machine can wrap, pull and tighten, cut off nylon zip tie once operator pulls the trigger of the tie gun.

2. The bundle capacity is 2,400 – 3,000pcs in a hour. It is faster than manual bundling.

3. The bundle forces are adjustable from 20N to 80N.

4. There is no vibration bowl. The noise is lower.

About packing

Be packed in wooden case.

About delivery

1. Cable tie machine can be shipped by air/FedEX etc..

2. Delivery time: 10working days. If you need urgent, please talk with our sales team.

FAQ

1. Could I ask for stainless steel shell of auto cable tie machine?

Yes, please tell the sales man if you need stainless steel.

2. Does cable tie machine SWT25100HC pass CE?

3. Do you have service center in other countries?

No, we don't build it. There are clients from Turkey, Brazil, Italy and Poland so on. If have any problems, please free to contact us.

Shenzhen Swift Automation Technology Co., Ltd. is located in the BaoAn District of Shenzhen City,12 KM to the Shenzhen Airport and near the New Convention and exhibition center. Our business majorly covers 2 aspects:

1. Automatic Nylon Cable Tie machine and its supporting equipments.
2. Nylon Cable Ties.

We have a very strong design team, most of the engineers graduated from the renowned military institution, such as HIT,Beijing Institute of Technology, Shenyang Aerospace University, worked as weapon designer for many years, and got trained and worked in Switzerland, Germany, Austria, and Czech Republicas for auomation design for years; Served as senior engineer and senior engineering manager in a number of large multinational enterprises (Vitech, Microsoft, Foxconn, Flextronics, TE, Whirlpool, etc.). Most of our assembly engineers come from丿apanese automation companies. Obtained European design conception and skill, with Japanese quality sense to control the manufacturing process, we can provide you the best technical solution and reliable product quality.
SWIFT--- will be becoming the world's top brand of nylon cable tie and the tools maker, with more than 50 inventions patents as well as multiple software Copyrights. Not only in dominant position in China market, our products have been sold to more than 30 countries and regions (such as United States, Netherlands, Mexico, Japan, South Korea, Turkey, Romania, Italy ... highly developed countries}, with nearly 400 customers in worldwide.

Our target: Internationalization, branding, specialization .
