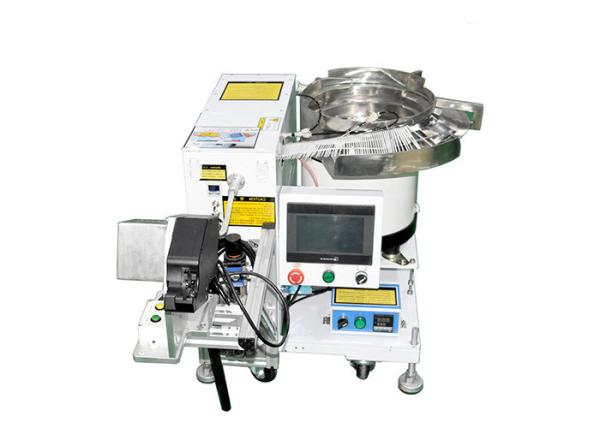

Appliance Tubes AC220V Automatic Wire Tie Tool 0.7S Per Cable Tie

Best cable tie gun made by our factory, SWT25100F can increase the speed of our production by reducing the process time.

Automatic cable tie gun takes about 0.7S to tie a zip tie and save labor cost.

Working principle

Handler puts nylon zip ties to the bowl feeder. There are enough tie wraps there. When operator treads foot pedal, cable ties would be transferred into the fixed cable tie gun, then be wrapped, tighten and cut.

Specifications

Features

1. Powerful function, one cable tie machine can use the same specification cable tie to bind a variety of different products.

2. The binding forces are adjustable from 20N to 80N.

3. Be fixed onto table or production line, release hands to handle work-pieces.

4. The bundle speed is 0.9S per zip tie. The cable tie gun can tie 1800pcs – 2400pcs in a hour.

5. The cable tie machine can provide bigger tightening force than other methods. When manual tools could not tighten the harness with PVC sleeve or bags sealing, the fixed cable tie gun might be your better choice.

6. The waste material could be collected into a box.

7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²

Application

Various fittings made of Copper, Aluminum and Stainless Steel Pipes between 2 mm and 17 mm for White Goods

Advantages

1. Our factory has over 50 patents of automatic cable tie machines/guns.

2. The automatic cable tie cutting tool covers 1 year warranty and tech support forever.

3. The cable tie cutting tool is able to handle work-pieces with step features.

FAQ

1. What is cable tie tools?

Cable tie gun made by SWIFT can be wrapped, tighten and cut nylon ties and the waste also could be collected into a box.

2. Does the cable tie tool use other type nylon cable ties?

No, it doesn’t. SWT25100F can use nylon zip ties T25100.

3. What is the lead time?

12-15 working days

Shenzhen Swift Automation Technology Co., Ltd. is located in the BaoAn District of Shenzhen City,12 KM to the Shenzhen Airport and near the New Convention and exhibition center. Our business majorly covers 2 aspects:

1. Automatic Nylon Cable Tie machine and its supporting equipments.
2. Nylon Cable Ties.

We have a very strong design team, most of the engineers graduated from the renowned military institution, such as HIT,Beijing Institute of Technology, Shenyang Aerospace University, worked as weapon designer for many years, and got trained and worked in Switzerland, Germany, Austria, and Czech Republicas for auomation design for years; Served as senior engineer and senior engineering manager in a number of large multinational enterprises (Vitech, Microsoft, Foxconn, Flextronics, TE, Whirlpool, etc.). Most of our assembly engineers come from丿apanese automation companies. Obtained European design conception and skill, with Japanese quality sense to control the manufacturing process, we can provide you the best technical solution and reliable product quality.
SWIFT--- will be becoming the world's top brand of nylon cable tie and the tools maker, with more than 50 inventions patents as well as multiple software Copyrights. Not only in dominant position in China market, our products have been sold to more than 30 countries and regions (such as United States, Netherlands, Mexico, Japan, South Korea, Turkey, Romania, Italy ... highly developed countries}, with nearly 400 customers in worldwide.

Our target: Internationalization, branding, specialization .

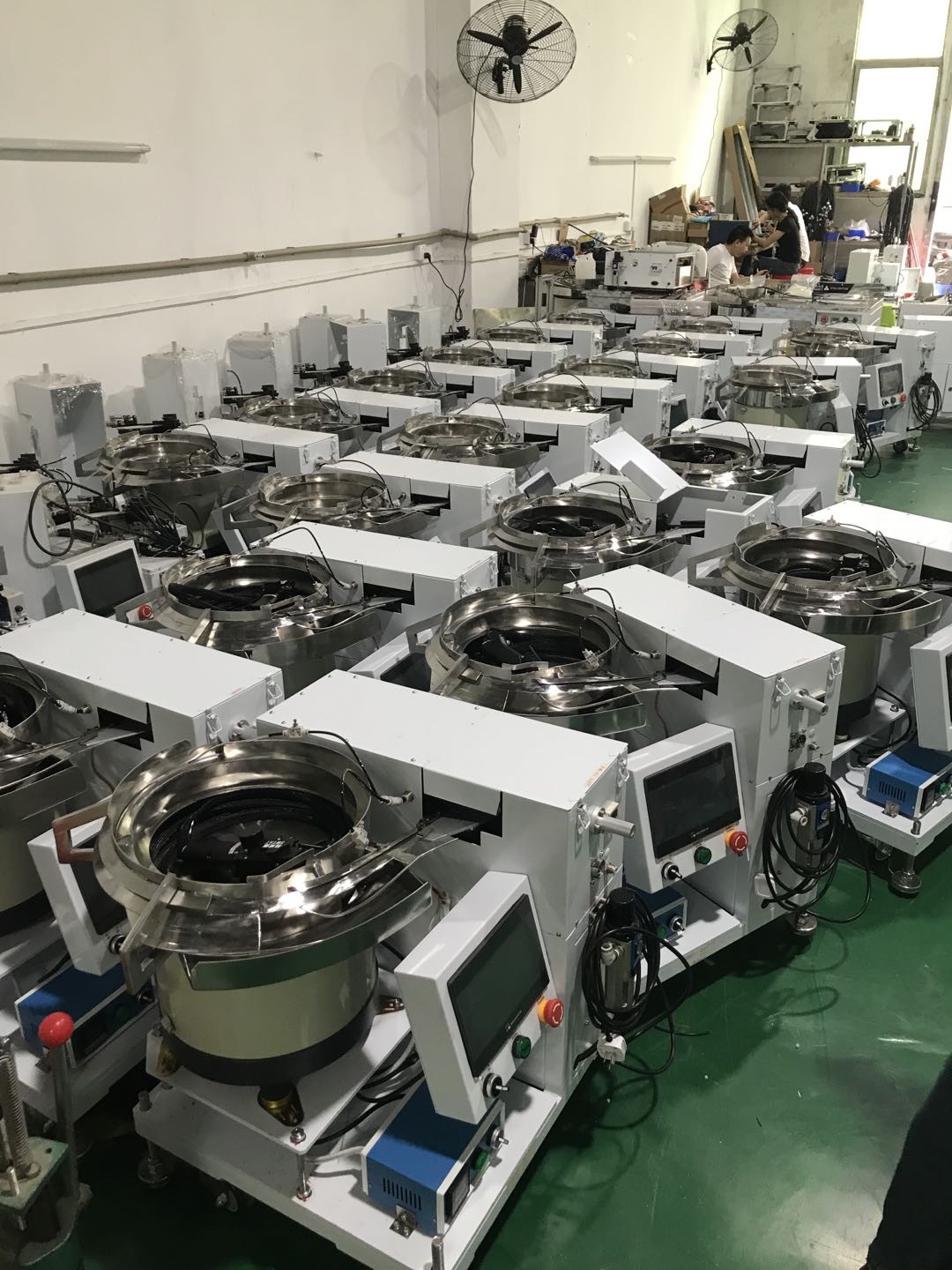

Our factory
